DAS Audio Altea 718A

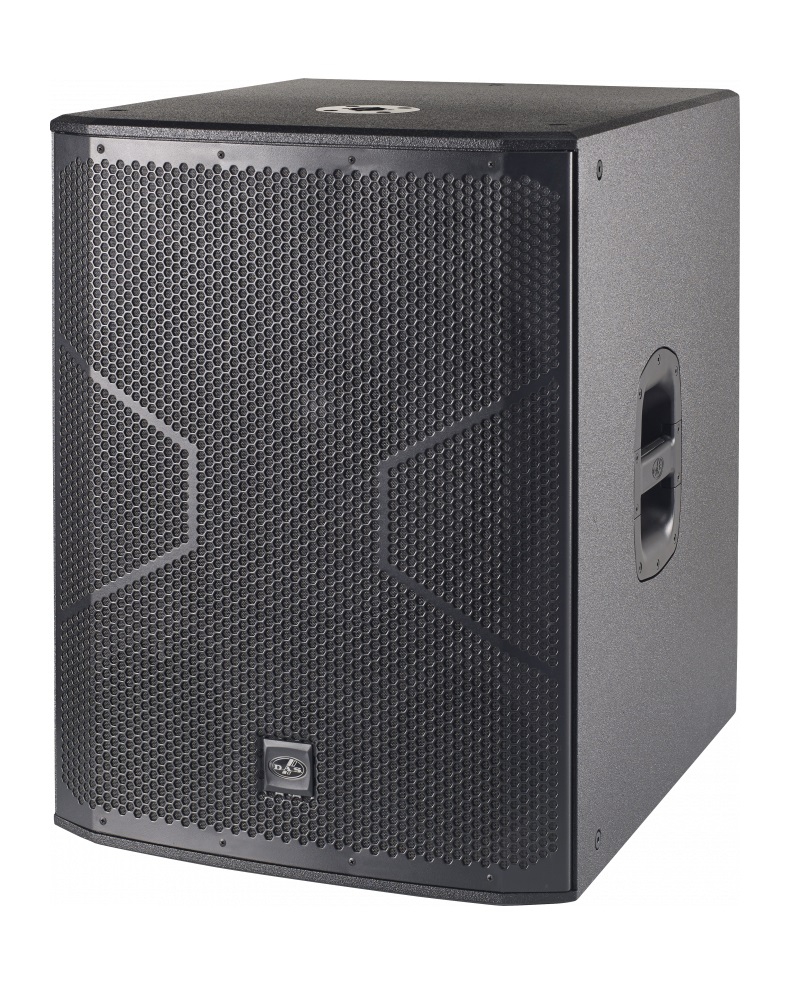

The ALTEA-718A is a powered subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3″ voice coil for long excursion. Cooling is assured thanks to the 18FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

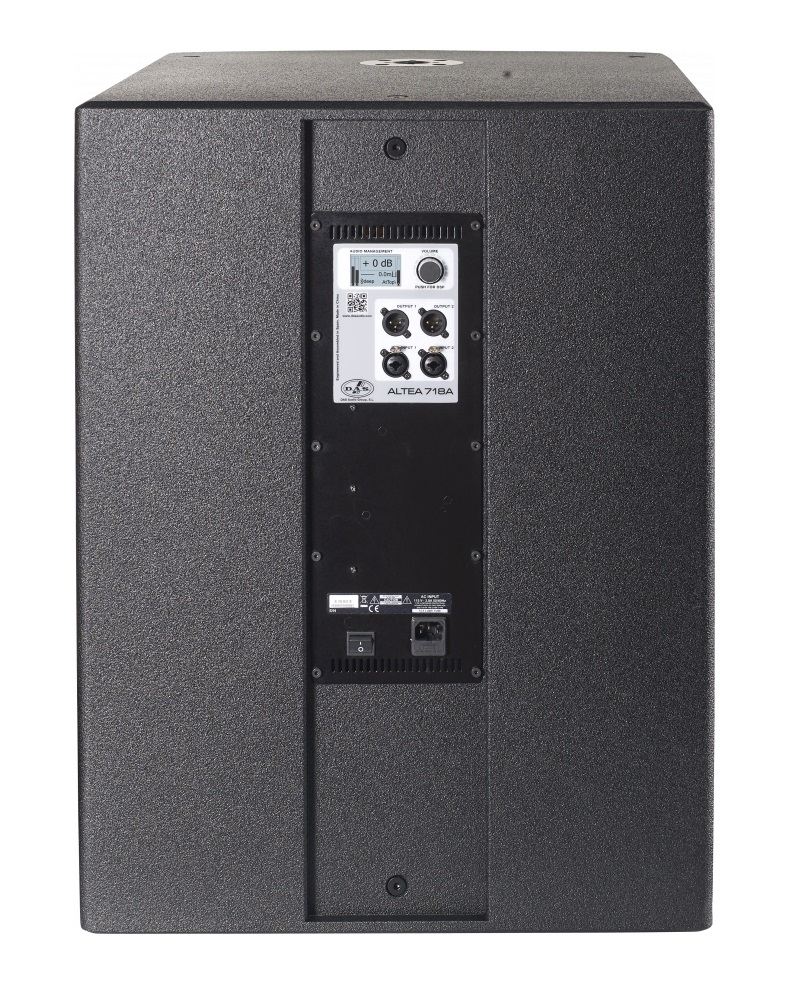

Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel a balanced input connector and stereo “loop thru” output connections are available to provide signal for ALTEA satellite systems. Thanks to the digital presets accessible by way of a DAScontrol interface on the rear of the cabinet, setting up a combo system with ALTEA full-range systems is easy.
The ALTEA-718 is the passive version for use with external amplification and outboard DSP.
Specifications:
• Powered subwoofer system
• Lightweight Class D amplifier
• High efficiency 18″ loudspeaker
• DAScontrol for easy setup and adjustment
• 24-bit high-end DSP with LCD screen
• Integrated rigging points and pole mount socket
• Nominal LF Amplifier Power : 1200 Wpeak - 600 Wcontinuous
• Frequency Range (-10 dB) : 45 Hz - 138 Hz
• Rated Peak SPL at 1 m : 134 dB
• Input : 2 x Female XLR
• LOOP THRU: 2 x Male XLR
• AC Input : Male IEC
• AC Requirements: 5 A, 115 V, 50/60 Hz / 2.5 A, 230 V, 50/60 Hz
• Enclosure Material : Birch Plywood
• Color/Finish : Black/ISO-flex
• Dimensions (H x W x D): 71 x 54 x 64.7 cm / 27.95 x 21.26 x 25.47 in
