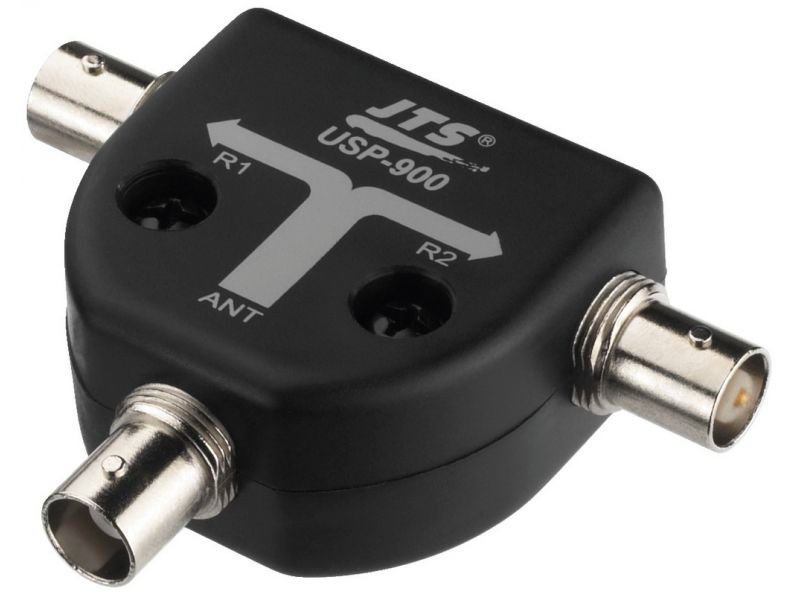

JTS USP-900 anténní rozbočovač / slučovač

JTS USP-900/b>

• For minimising the great effort and expense of antennas for wireless receiver systems or transmission systems
• Splits one antenna input signal to two antenna output signals
• 2 x USP-900 required for commonly supplying two diversity receivers set up with two antennas respectively
• DC suppression
• Can also be used as a combiner in order to operate 2 x SIEM-111/5 with one antenna
• Frequency range: 10-1,000 MHz
• Launch attenuation: 2 dB
• Decoupling: 20 dB
• Impedance level: 50 Ω
• Connection: 3 x BNC jack
• Dimensions: 72 x 24 x 56 mm
• Weight: 63 g
