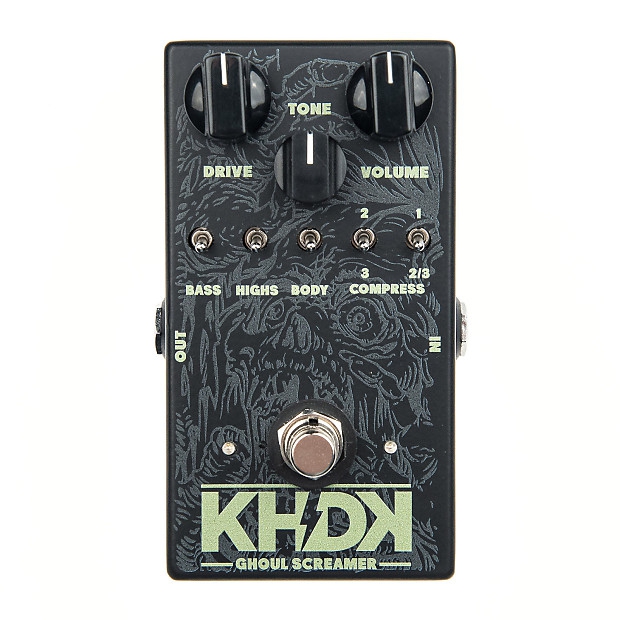

KHDK Ghoul Screamer

KHDK Ghoul Screamer

Conceived in the dark depths of Kirk Hammett’s mind, an iconic circuit has been pushed to perfection and equipped with 5 switches to give you the ultimate control over your tone.
In addition to the three standard controls (Drive, Tone, Volume) five mini toggle switches have been added, offering enhancement for Bass, Highs, and Body, as well as two variations of Compression.
This hugely enhances your sound palette and elevates the Ghoul Screamer to the highest class of stage and studio gear.

Controls:

• DRIVE controls the gain of the circuit. On lower Drive settings, the Ghoul Screamer works as a clean boost with a characteristic mid hump. For more distortion turn the Drive control higher to increase the harmonics, compression and power.
• VOLUME controls the overall output volume of the Ghoul Screamer.
• TONE a very effective active high-frequency tone control. At 12 o’clock it’s neutral. Turned clockwise it becomes raw, aggressive and helps your tone cut through. Turned counterclockwise it cuts the highs for a more mellow and warm tone.
• BASS SWITCH when activated, it enhances the low frequencies, thickens the tone and adds a massive bottom end. Ideal for instruments with a sharp tone and a weaker output.
• HIGH SWITCH expands the Tone potentiometer to reach towards higher frequencies, enhancing the brilliance and the clean tonal quality and helps less sharp instruments to be heard.
• BODY SWITCH improves the tonal response in the mids as well as the tightness and penetration of your tone in the mix. This mode is particularly effective when used with low tuned or seven-string guitars.
• COMPRESSION SWITCHES select between three types of tonal character and compression. The lowest setting (1) offers a soft and warm compression, reminiscent of vintage pedals. The highest setting (3) offers a transparent tone with an aggressive expression rich in harmonics. The compression and tone are reminiscent of an iconic modified British stack. The medium setting offers a balanced blend of modes (1) and (3). The different compression modes will change your output volume, use your Volume control to adjust.
• FOOTSWITCH engages your Ghoul Screamer to “on” or True bypass mode.


The KHDK Ghoul Screamer is powered by a single 9V battery. You can access the battery connection by unscrewing the bottom plate of the pedal enclosure. Alternatively, plug in an external 9V DC (center negative) power supply.

Specifications:

• Bypass mode: True Bypass
• Dimensions: 120 x 65 x 40 mm deep (Width x Depth x Height)
• Input Connector: Type Standard ¼” jack – mono/TS
• Output Connector: Type Standard ¼” jack – mono/TS
• Power Input: Standard 9V Battery or 9V DC (center negative) power supply.
