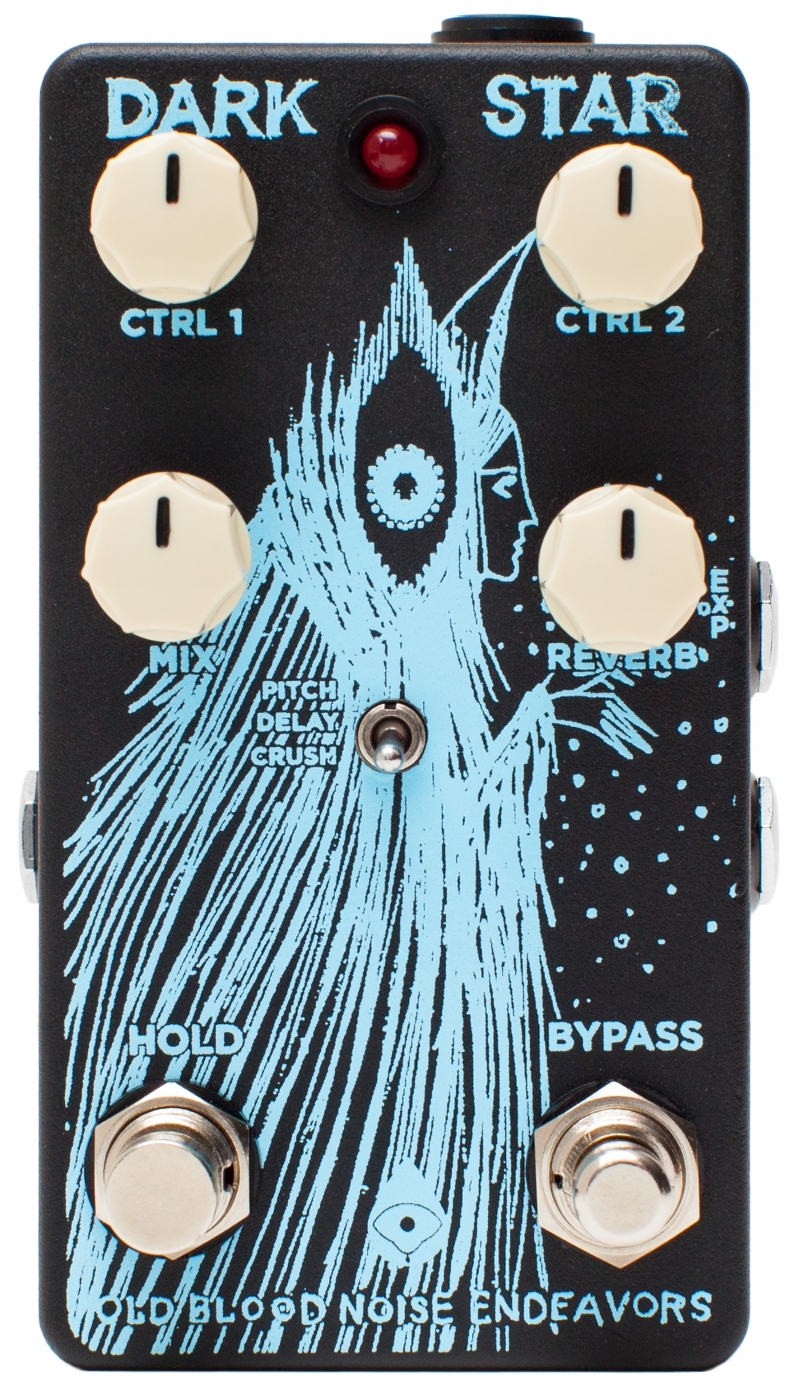

Old Blood Noise Endeavors DARK STAR

The Dark Star is what we would use to create long reverberated pads. The noises underneath the lead. The mood setter. At its heart, the Dark Star is a Reverb. Then the Reverb signal passes through three possible modes: Pitch, Delay and Crush. CTRL 1 and CTRL 2 correspond with the selected mode. In Pitch, you've got two independent pitch controls for + and - an octave. In Delay, you've got the Delay Time and Delay Feedback. In Crush, you've got a pitch control for +/- an octave and then a control for Bit Crush. The Mix and Reverb knobs control the mix of dry/wet signal and the decay of the reverb, respectively. The Dark Star has two footswitches. The Bypass switch is your standard on/off True Bypass switch. The Hold switch is a momentary footswitch that when pressed, will lock in whatever note is being played through the reverb effect. The Dark Star now features an expression out jack and clickless switching. The output level can be tweaked via an internal trimpot for boost, slight drop, or unity gain.

- Reverb effects pedal
- digital
- 3 modes (Pitch/Delay/Crush)
- combines reverb with different modulation effects (Reverb + Pitch Shifting / Reverb + Delay / Reverb + Pitch Shifting + Bit Crusher)
- expression control over either Reverb decay or one mode dependent parameter
- freeze function
- true bypass
- controls for Rate, Depth, Mix and Modulate
- toggle switch for selecting between modes
- internal DIP switch for selecting expression control parameter (Reverb/CRTL 1)
- internal Output trim pot
- Bypass footswitch
- Hold footswitch
- status LED
- metal housing
- 6.3 mm mono IN/OUT jacks
- 6.3 mm TRS EXP input
- power supply via optional 9V DC adapter, 5.5 mm x 2.1 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 46 mA
- dimensions (L x W x H) 126 mm x 73 mm x 57 mm
- weight 430 g
- made in USA
- 4 Years W-Music Distribution Warranty (product registration required)
