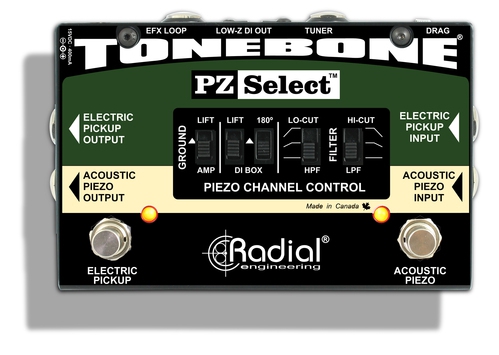

Radial Pz-Select Tonebone Pz Select Piezo Magnetic Pickup Selector

- Pickup selector with 2 channels for choosing between piezo and magnetic pickups,
- Class-A circuitry,

Controls and connectors:
- ELECTRIC PICKUP footswitch: On/Off switch for magnetic pickup,
- ACOUSTIC PIEZO footswitch: On/Off switch for acoustic piezo pickup,
- PIEZO CHANNEL CONTROL: Ground Lift for acoustic amp output & DI,
- XLR 180°: reverses signal polarity at the XLR output,
- HI-CUT: 3 position high-cut filter for acoustic channel,
- LO-CUT: 3 position low-cut filter for acoustic channel,
- Drag Control: Adjusts pickup loading for magnetic pickups,
- Status LEDs,

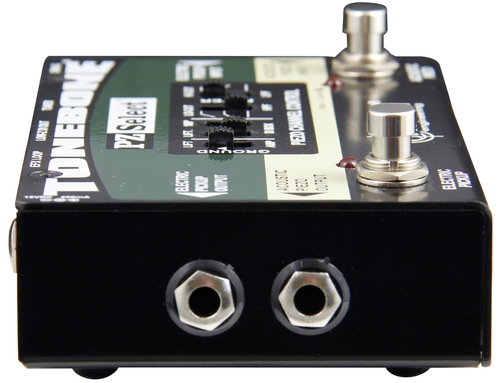

- Input ELECTRIC PICKUP: 1 x 6.3 mm standard mono jack,
- Input ACOUSTIC PIEZO PICKUP: 1 x 6.3 mm standard mono jack,
- Output ELECTRIC PICKUP: 1 x 6.3 mm standard mono jack,
- Output ACOUSTIC PIEZO PICKUP: 1 x 6.3 mm standard mono jack,
- Output EFX LOOP: 1 x 6.3 mm TRS stereo jack for send/return,
- BALANCED DI OUTPUT: XLR output for the piezo signal,
- Power supply (included with the unit): 15VDC 400mA, (+) center, (-) barrel,
- Dimensions: 146 mm x 95 mm x 50 mm,
- Weight: 800 g,
- Made in Canada
