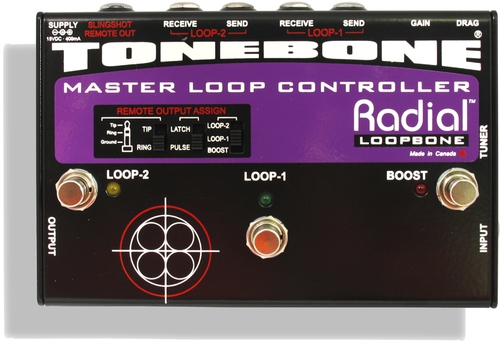

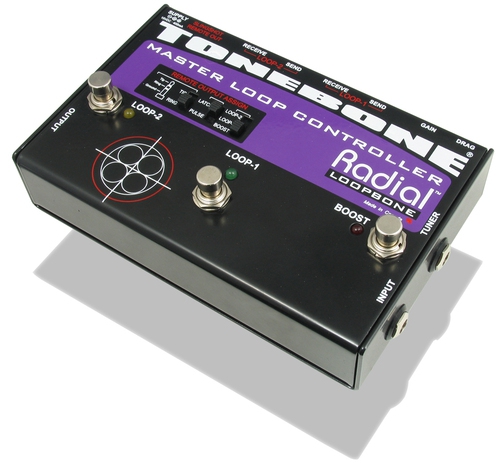

Radial Loopbone Tonebone Loopbone Fx Loop Switcher

- Loopbone Effects Loop Controller
- Insert, remove and combine pedals via two independent signal chains
- Eliminates the tone robbing problems associated with other switchers
- Class-A circuit for highest quality audio
- Two Effects-loops plus SlingShot? remote
- Adjustable power booster for soloing
- Extra durable switchers with metal outer casing are rated at over 20,000 cycles
- Glass-filled connectors with nylon housing provides isolation for reduced noise

Controls and Connectors:
- SLINGSHOT OUT: 6.3mm Jack, remote control output, sends contact closure for switching On/Off
- LOOP-1 SEND / RECEIVE: 6.3mm Jack, used to connect the pedals to the first effects loop
- LOOP-2 SEND / RECEIVE: 6.3mm Jack, used to connect the pedals to the second effects loop
- GAIN - Set & forget control: adjust the amount of gain increase when power booster is on
- FUNCTION ASSIGN: Assign the Slingshot remote output to BOOST, LOOP-2 or LOOP-2
- TIP/RING: Switch adapts Slinshot remote to either wiring setup
- LATCH/PULSE: Adapts Slingshot to either type of switching signal
- DRAG: Adjust the load on the pickup to replicate the tone and feel when connected to amp
- TUNER: Separately buffered tuner out ensures clocking noise and loading from the tuner out with not affect the signal
- INPUT: 6.3mm standard mono
- BOOST: Kicks up guitar level for solos. Super-quiet photocell switching troughout.
- LED: Separate LED indicators for each loop lets you know when the loops are active
- Power Supply:15V DC (included with the unit)
- Dimensions (W x D x H): 175 mm x 108 mm x 54 mm
- Weight: 1000 g
- Made in Canada
