Yamaha VXC6W reproduktor

Název:	Yamaha VXC6W reproduktor
Výrobce:	Yamaha
Id zboží / Kód:	162291 / Y-VXC-6W
Množství na skladu:	0 set
Pozor! Cena tohoto zboží se mohla změnit. Aktuální cenu a čekací dobu dohodnete s opatrovníkem výrobku.
Jiné označení výrobku:	Yamaha VXC6W ceiling speaker 6″ (pair), Yamaha VXC-6W, Yamaha VXC 6W, Yamaha VXC6W, VXC-6W, VXC 6W, VXC6W
Správce výrobku:	Marcin Szampowalski, tel. +42 0234261768, email: [email protected]

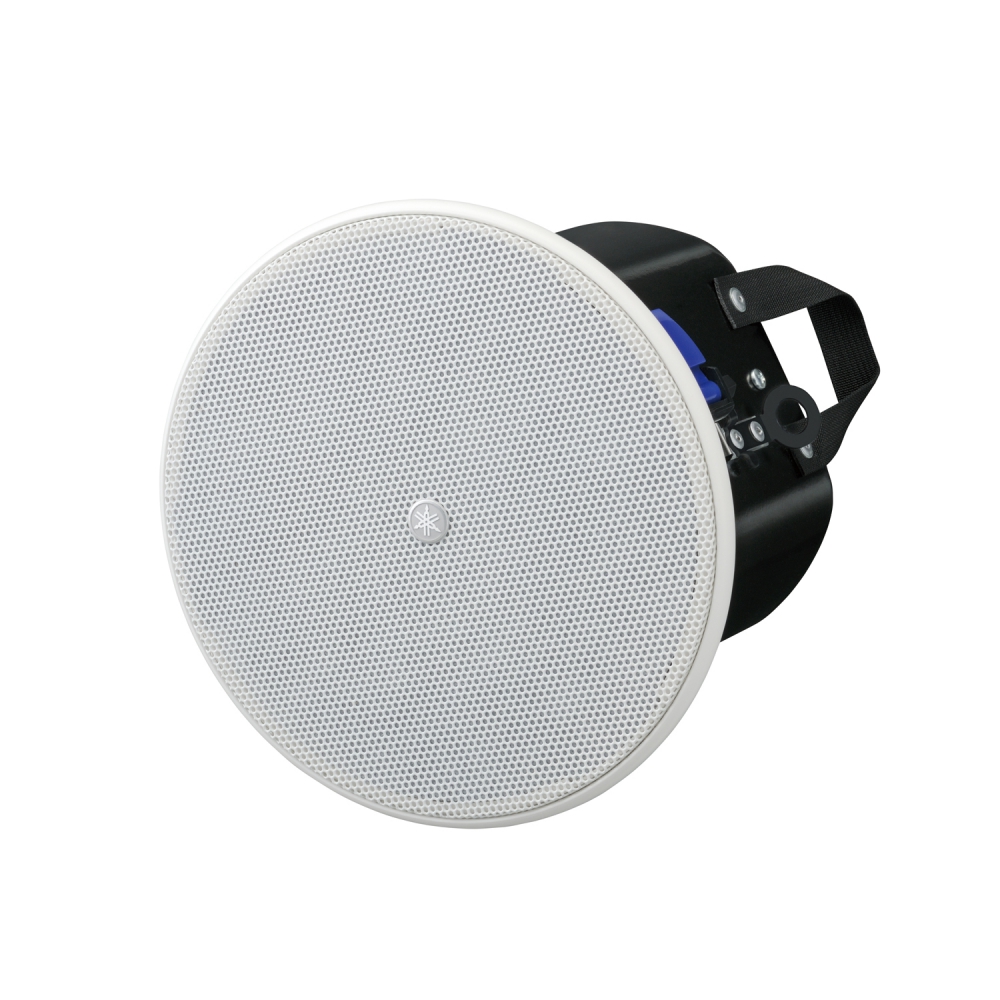

Yamaha VXC6W

A versatile lineup for clear consistent sound. 6.5" cone woofer with a 0.75" soft dome tweeter

Specifications:

• Speaker type: 2-way, Acoustic suspension
• Frequency range (-10dB): 56Hz - 20kHz (Half-space:2π)
• Nominal coverage : 110° conical (Half-space:2π)
• LF: 6.5" Cone
• HF 0.75" Soft dome
• Power rating NOISE: 75W
• PGM: 150W
• PEAK: 300W
• Nominal impedance: 8Ω
• Transformer taps
- 100V: 60W (170Ω), 30W (330Ω), 15W (670Ω)
- 70V: 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
• SPL: Sensitivity (1W; 1m on axis) 86dB SPL (Half-space:2π)
• Peak (Calculated) 111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
• I/O connectors: 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
• Finish: VXC6: Black / VXC6W: White
• Dimensions: Diameter :286mm (11.3")
• D: 205mm (8.1")
• Net weight: 4.4kg (9.7lbs)
• Cutout size: Ø247 mm (Ø9-3/4")
• Required ceiling board thickness 5 mm – 35 mm
