LD Systems STINGER MIX 6 A G2

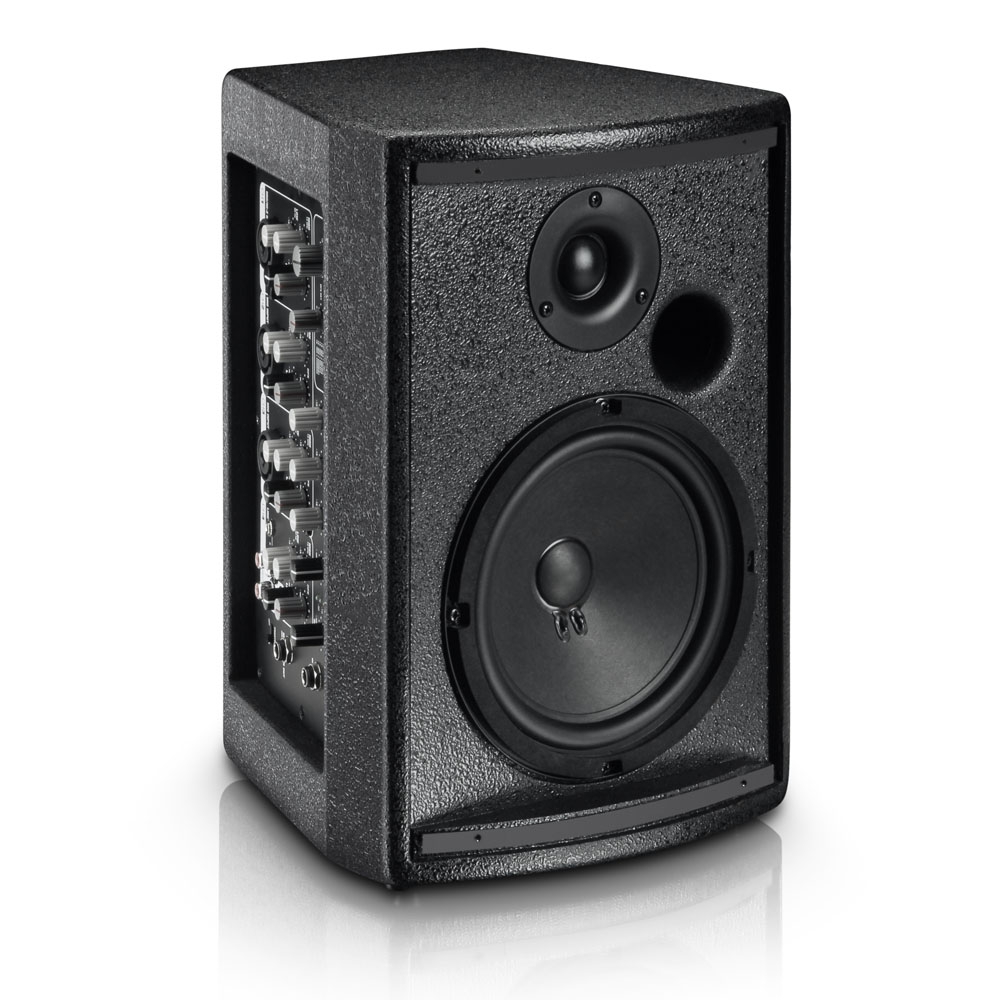

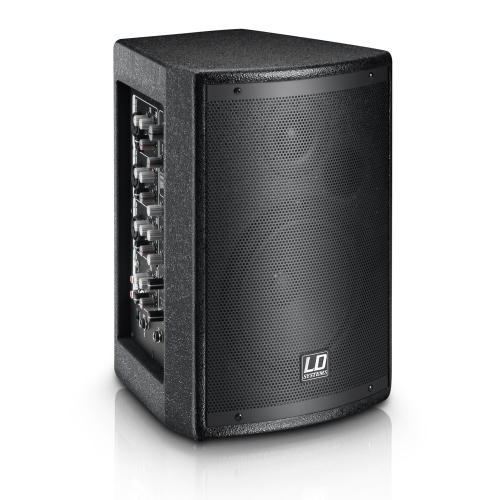

With a built-in mixer, the compact, lightweight Stinger MIX 6 AG2 active loudspeaker is the perfect choice for small-scale PA and personal monitoring applications. It features a 6.5" woofer and 1" HF transducer with an 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering amazing sound with clarity and punch.

The integrated mixer provides a stereo line and 3 microphone channels with high and low EQ, switchable hi-Z input and phantom power plus 24-bit digital effects. It allows for connecting a wide variety of sources including MP3 and CD players, iPods, instruments and condenser mics. The output section includes a 3-band master EQ for overall tone shaping and feedback control, 4-segment LED metering, RCA recording outputs and an adjustable monitor out. The Stinger MIX 6 A G2 incorporates a Class D amplifier with 2x280 watts peak power and 6.3 mm TRS output to power its optional passive companion Stinger MIX 6 G2.

Dual bottom and side stand mount inserts permit both vertical and horizontal setup, the latter putting the mixer controls right at your fingertips. On its own or in tandem with the passive unit, the Stinger MIX 6 A G2 provides awesome performance and versatility in an easily portable package.

SPECIFICATIONS

• Product number: LDMIX6AG2
• Product type: PA Speaker with integrated Mixer
• Type: active
• Woofer dimensions: 6.5"
• Low/mid driver dimensions (mm): 165.1mm
• Woofer brand: Custom-made
• Tweeter dimensions: 1"
• Tweeter dimensions (mm): 25.4mm
• Tweeter brand: Custom-made
• Dispersion (H x V): 80 x 70°
• Frequency response: 80 - 20000Hz
• Amplifier: Class D
• Amplifier Output (RMS): 2x70W
• Amplifier Output (Peak): 2x280W
• Max. SPL: 122dB
• Protection circuits: over-current, limiter, overload, short circuit, thermal overload

Mixer
• Channels: 4
• Mic inputs: 3, XLR, 6.3 mm Jack
• Controls for Mic Inputs: EQ Hi, level, DFX Send, EQ Low, Hi-Z Switch (channel 1 only)
• Input Impedance Mic Inputs: (unbalanced) 14kOhm
• Input Sensitivity Mic Input: 70mV
• Line inputs: 1
• Line input connectors: 3.5 mm TRS, 2 x RCA
• Controls Line Inputs: EQ Low, DFX Send, EQ Hi, level
• Input Impedance Line Inputs: (unbalanced) 4.4kOhm
• Input Sensitivity Line Inputs: - 5dBu
• Hi-Z inputs: 1
• Hi-Z input connectors: 6.3 mm Jack
• Input Impedance Hi-Z Input Connectors: 100kOhm
• Monitor Line Outputs: 1
• Connector Type Monitor Line Output: 6.3 mm stereo jack (balanced)
• Controls for Monitor Line Output: Monitor Volume
• Max Output Level Line Output Monitor: 28dBu
• Record Outputs: 1
• Connector Type Record Output: 2 x RCA
• Max Output Level Record Output: 20
• Reinforced Main Outputs: 1
• Connector Type Reinforced Main Outputs: 6.3 mm jack (min. 4 Ohm impedance)
• Increased power main output (at 4 ohm): max. 70 W / 140W

DSP Digital Effects Unit
• DSP Number of Programs: 16
• DSP Controls: Mute switch, DFX Return, presets
• DSP Display Elements: Peak LED

Main Section

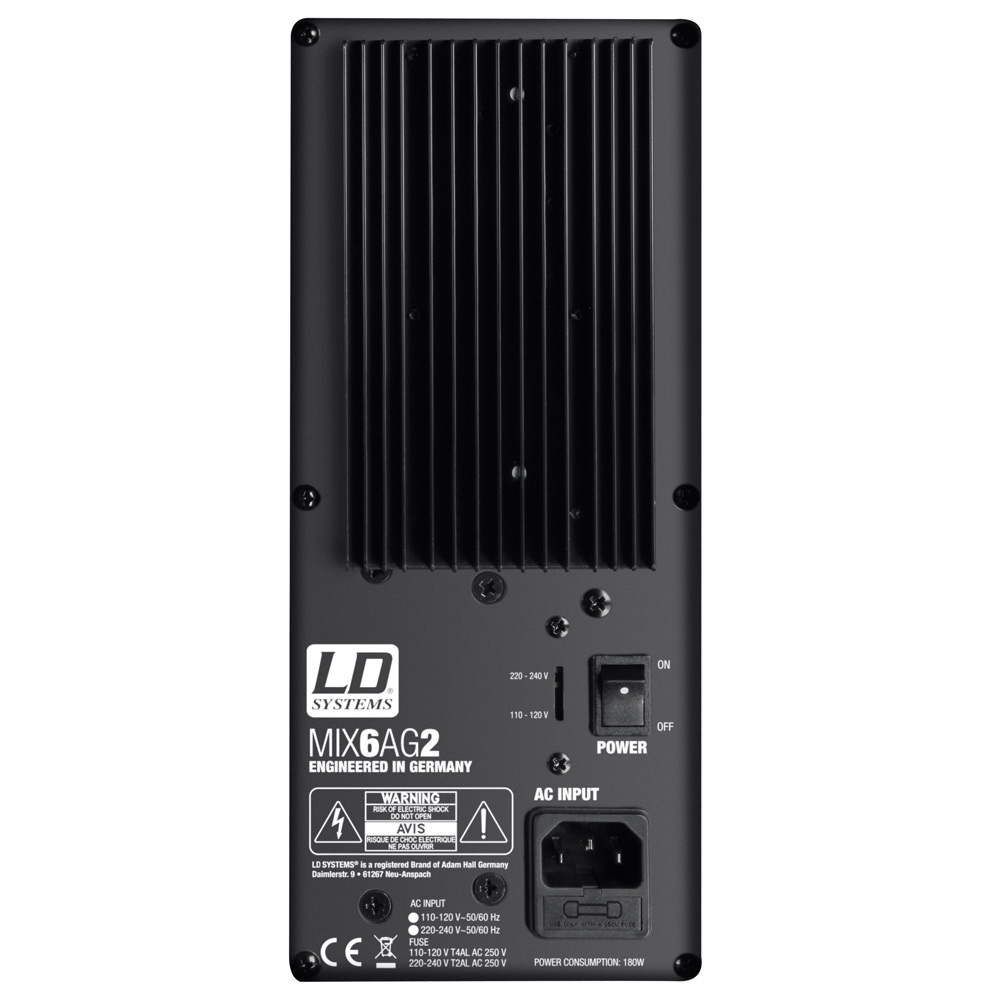

• Main section controls: EQ Hi, EQ Low, switch operating voltage, EQ Mid, Main Level, Power On/Off, Phantom Power
• Main section indicators: 4-segment Level Meter, power LED
• Phantom power: 15 V
• Mains connector: IEC socket
• Operating voltage: transformer, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
• Power consumption: 180W

Cabinet
• Cabinet construction: vented
• Cabinet material: MDF
• Cabinet surface: texture paint
• Cabinet colour: black
• Width: 214mm
• Height: 323mm
• Depth: 222mm
• Weight: 6.8kg
• Other features: 2 x 16 mm pole mount socket, rubber feet
