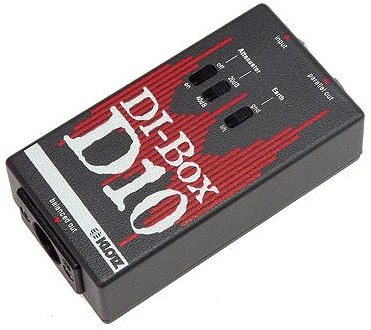

Klotz D10KL Di-Box

Klotz D10KL

Klotz company is a leading international producer of cables and cable systems. Their products are used in over 100 countries around the world and serve as benchmark standards in a host of audio, video and multimedia applications. DI-Box is an interface between balanced and unbalanced signals. Any musician generating an unbalanced output signal needs it to feed the signal directly into the balanced microphone input of a mixing desk.

Specifications:
• Unbalanced input and output: 6.3 mm Jack Socket
• Balanced output: XLR 3p. male
• Max. input level at Attn. OFF: +10 dBu (2.5 V)/ 20 kOhm
• Max. input level at Attn. 20: +30 dBu (25 V)/ 40 kOhm
• Max. input level at Attn. 40: +50 dBu (250 V)/ 40 kOhm
• Max. Output Level: -10 dBu (250 mV)/ 200 Ohm
• Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dB)
• Harmonic Distortion: 0.3 %
• Housing: extremly solid die casted aluminium
• Size: L=111 mm; W=60 mm; H=32 mm
