TW Audio C15

TW Audio C15

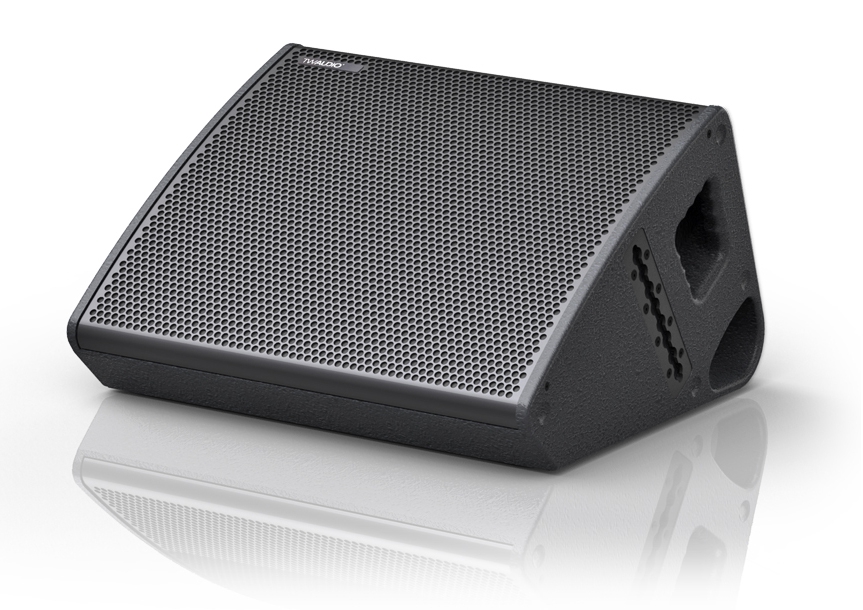

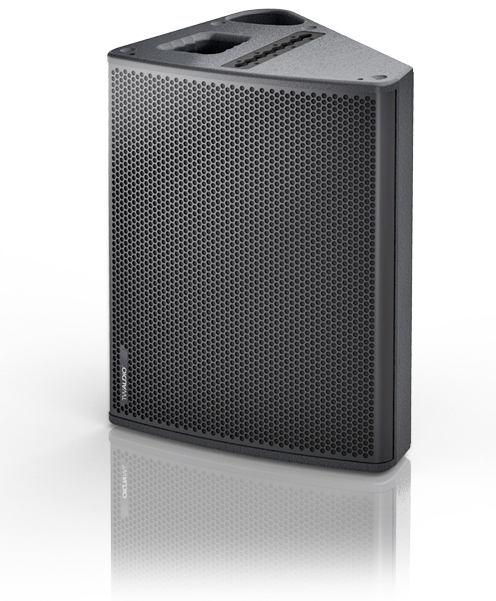

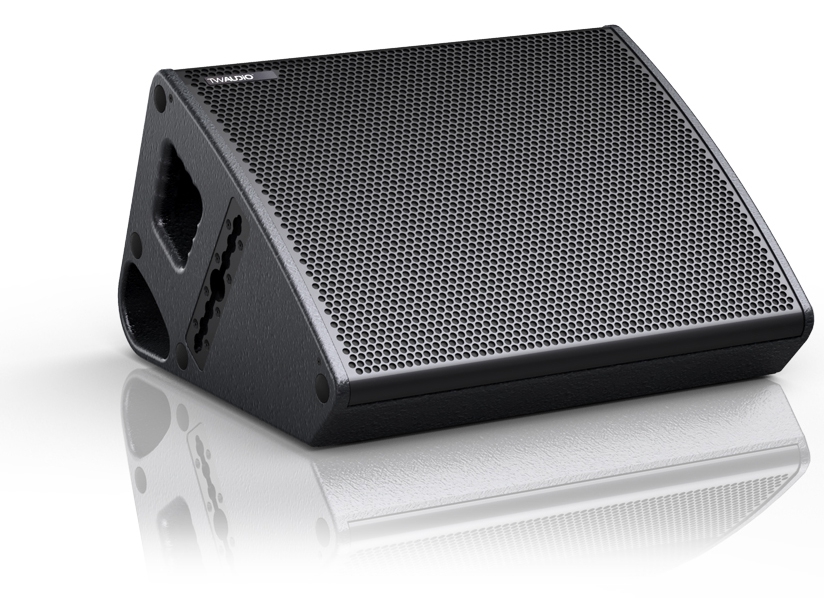

The C15 is a coaxially constructed two-way monitor. In its low-profile housing it fits perfectly into every optical environment – inconspicuous, elegant and beautifully matched. The C15 is a high-performance monitor which can also be used multi-functionally and, can be optimally combined with all other TW AUDiO speakers.

Specifications:

• Drivers: 1 × 15" LF, 1 × 1,4" HF coaxial
• Frequency range: 55 – 17000 Hz
• Power capacity program / peak: 800 W (bi-amp LF), 320 W (bi-amp HF) , 800 / 1600 W (passive)
• Impedance: 8 Ohms (bi-amp LF), 20 Ohms (bi-amp HF), 8 Ohms (passive)
• Coverage (h x v): in monitor use 55° × 70° HF-horn, rotatable
• Sensitivity 1 W / 1 m: 101 dB
• SPLmax / 1 m: 133 dB
• Connection: NL4 1± HF / 2± LF (bi-amp), NL4 1± (passive)
• Dimensions (H x W x D): 348 × 605 × 500 mm [13.7 × 23.82 × 19.69 in]
• Weight: 23,8 kg [52.47 lbs]
• Finish: Warnex texture paint
