Yamaha DXR 8 aktivní reproduktor

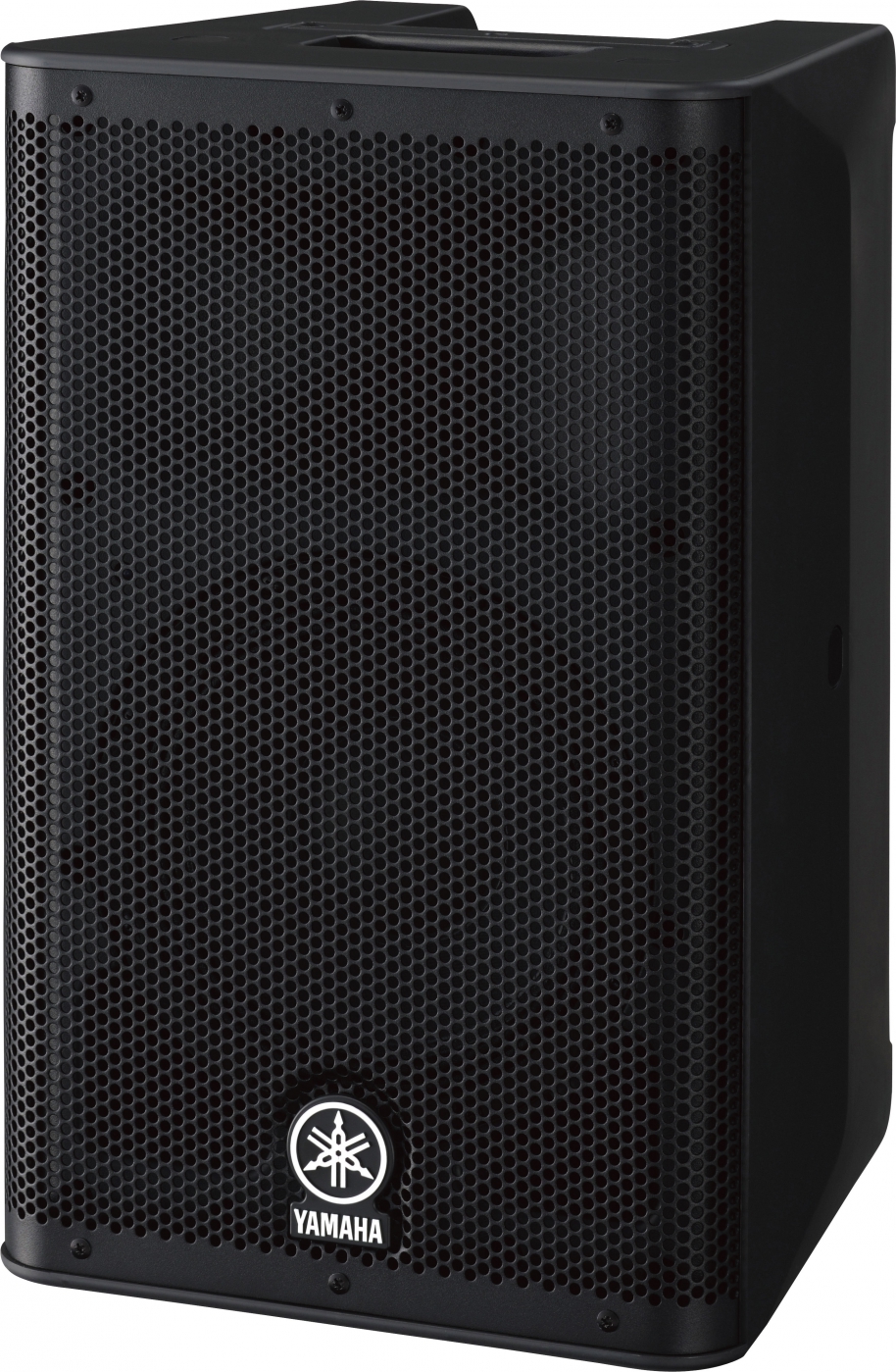

Yamaha DXR8

The most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.

SPECIFICATIONS
• Speaker type: 8" 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range (-10dB): 57Hz - 20kHz
• Nominal coverage
- H: 90°
- V: 60°
• Components
- LF: Diameter:8" cone, Voice Coil:2", Magnet:Ferrite
- HF: Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover: FIR-X tuning (linear phase FIR filter)
• Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
• Maximum output level (1m; on axis): 129dB SPL

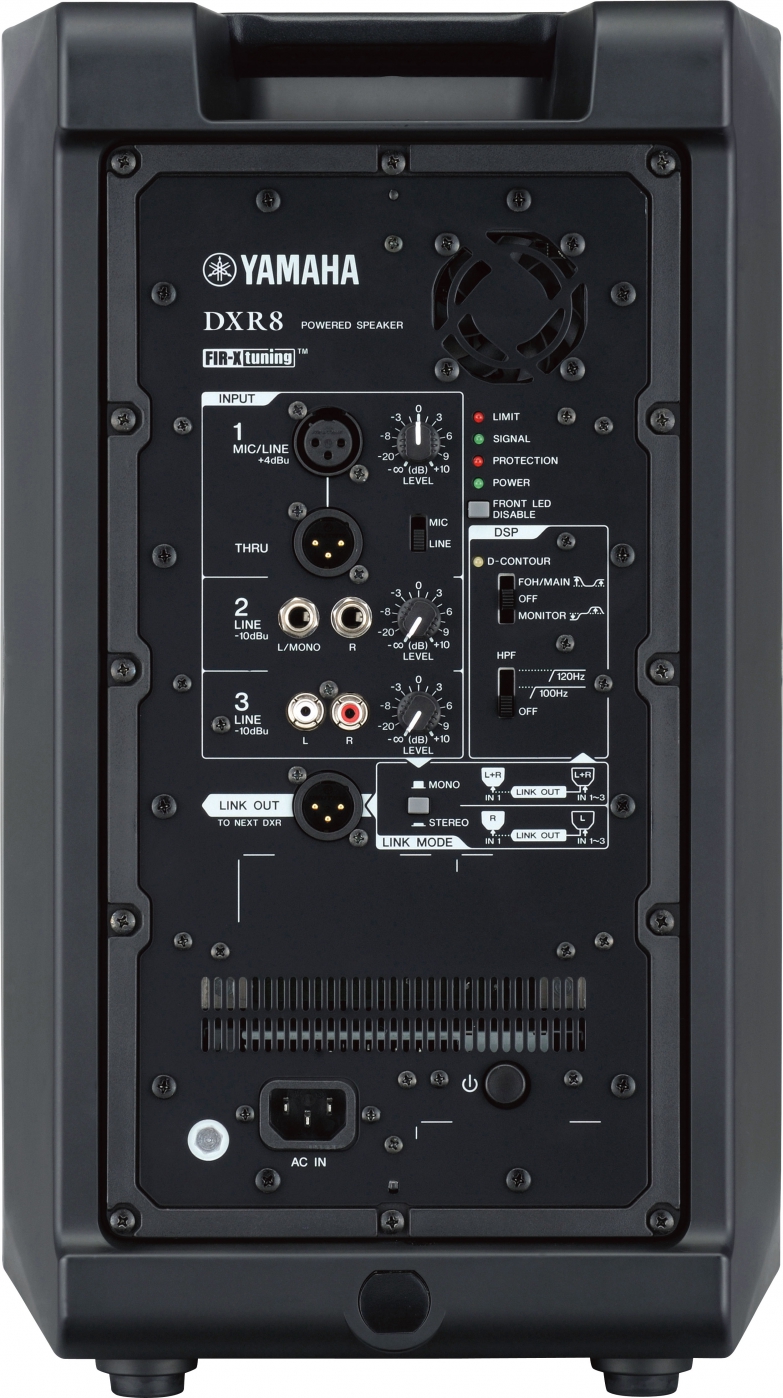

• I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT1), LINK OUT: XLR x 1
• Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
• Power requirements: 100V - 240V, 50Hz/60Hz
• Power consumption: 90W
• Flying and mounting hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
• Pole socket: 35mm with 2-way features (0 or 7 degrees)
• Dimensions
- W: 280mm (11")
- H: 458mm (18")
- D: 280mm (11")
• Net weight: 13.5kg (29.8lbs)
• Accessories: UB-DXR8 (U-bracket)
• Others: Material: ABS (Matte Finish, Black)
