dB Technologies SYA 15

dB Technologies SYA 15

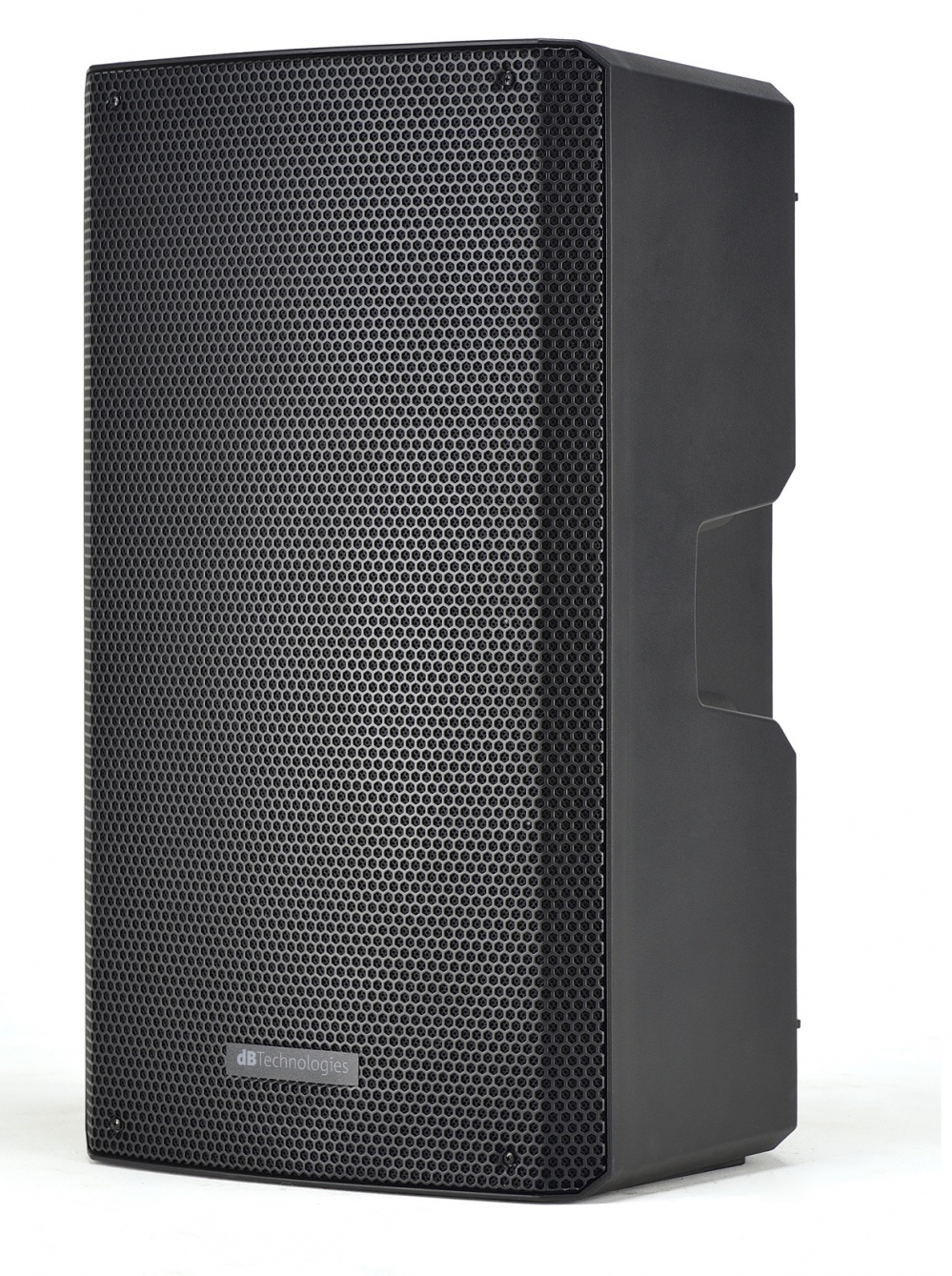

KL 15 is a 2-way active speaker equipped a 15” woofer and 1” compression driver (1.35 voice coil).
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.
All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).
The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.
KL comes with its soft cover equipped with a pocket specially designed for cable storage.

Specifications:

• Speaker Type: 2-Way Active Speaker
• Frequency Response [-10dB]: 48 - 18.000 Hz
• Max SPL: 128 dB
• HF: 1" CD, 1.35"v.c
• LF: 15", 2.5" v.c.
• Dispersion: 90°x60°
• Crossover Frequency: 1800 Hz (24 dB/oct.)
• Amp Technology: Class D(LF)+Class AB (HF)
• Power Peak (LF+HF): 800 W
• Controls: 1xVolume, 1xslide switch mic/line
• Indicators: power on/signal/limiter LEDs
• Controller: DSP 20/56 bit
• AD/DA Converter: 24 bit/ 48 Hz
• Systems Presets: Playback, Flat, Bass Boost, Wedge
• Limiter: Peak, RMS, Thermal
• Advanced DSP Functions: Linear Phase FIR Filters
• Signal Input: 1x Combo(XLR/Jack)
• Mic/Line: 1xXLR/TRS
• Bluetooth Input: 1xBluetooth receiver
• SIGNAL Output: 1xXLR Male (LINK/MIX)
• Housing: Polypropylene
• Handles: 3 (2 on side 1 on top)
• Angles Up: Monitor Use 45°
• Pole Mount: 36 mm, double positioning
• Width: 430 mm (16.92 in)
• Height: 722 mm (28.44 in)
• Depth: 402 mm (15.82 in)
• Weight: 19.3 kg (42.54 lbs)
