Showtec 43324

Showtec Vintage Blaze ′33

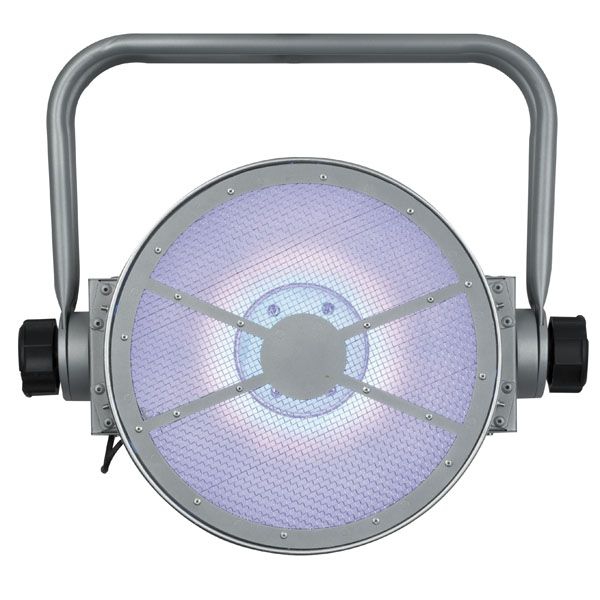

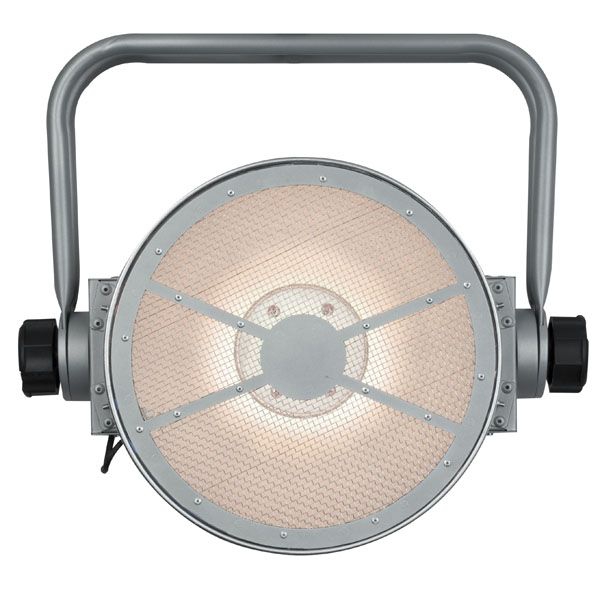

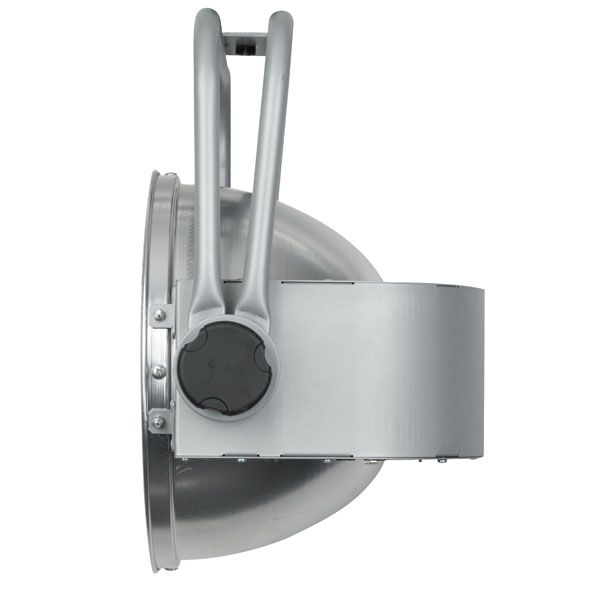

The Vintage Blaze ’33 is a great complement for the most creative lighting designs. With the Retro look the Vintage Blaze ’33 is ideal for live, theatre and TV applications. In addition to the tungsten lamp, the Vintage Blaze ’33 has a RGB LED Blaze background effect with strobe function and colour macros which gives an extra dimension to this fixture. The combination of both light sources can create great atmospheres on stage and can even be used for blinding FX. The Vintage Blaze ’33 can be used in all demanding DMX modes from 1 up to 11 channels. The manual option gives you the opportunity to run the fixture in stand-alone modus.

Features:

• Including GY9.5 230V 300W Osram bulb
• 2 Light Sources (Tungsten,max 300w) and RGB LED)
• DMX mode and stand-alone control
• DMX and Powercon in and out for easy daisy chain
• Individual dimmer curves for LED and Tungsten

Specifications:

• LED: 5050 RGB
• Lampsocket: GY9.5
• Bulb: 230V / 300W (Max) / Bulb included
• Input voltage: 240VAC, 50/60Hz
• Power consumption @ FO: 350W
• On-board: Dimmer
• Control protocol: DMX 512, Static
• DMX Personality: 1,2,4,11 Ch.
• Dimmer curves: Linear, S-Curve, Square, I-Square
• Dimensions (WxDxH): 450 x 335 x 490 mm
• Weight: 6.26 Kg
• Fixture connection: DMX 3p & 5p In/out, Power In/Out
