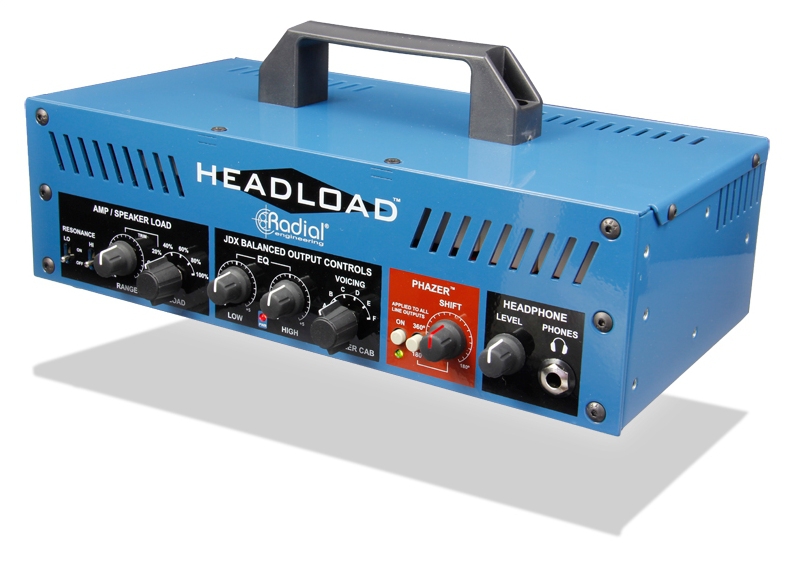

Radial Headload-V-8 Tonebone Headload V8 8 Ohm Guitar Amp

The Headload is a combination load box and attenuator that is capable of handling up to 120 watts RMS of continuous power. Inserted between the head and cabinet, it allows the guitar amp to be driven hard while reducing the output level to reduce the sound pressure on stage or provide the means for quiet recording in the studio. This enables the artist to optimize the tone from the guitar amplifier without having to perform at ear-blistering levels. The Headload is available with 4, 8 or 16 ohms load.

- load box / attentuator for amplifiers
- load 8 ohms
- max. 120 watts
- lets you drive your amp at low output volumes
- to be inserted between amphead and cabinet

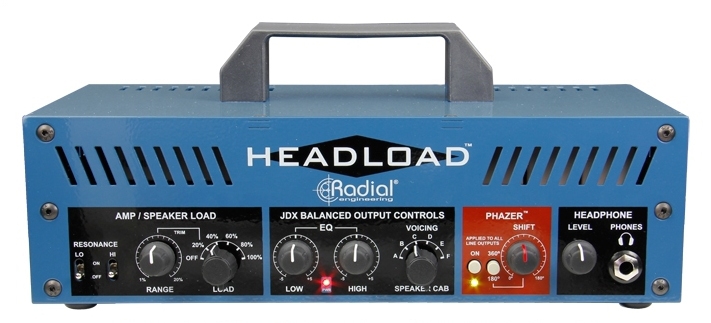

- Amp / Speaker Load section control for Range
- Load 5-way rotary switch for selecting Speaker load
- Lo Resonance switch
- Hi Resonance switch
- Low and High controls for JDX Balanced Output
- Speaker Cab 6-way rotary switch for selecting speaker voicing
- Phazer Shift control
- Phazer On switch for bypassing Phazer circuit
- 180°/360° switch
- front-side 6.3 mm Headphone stereo output
- separate control for headphone level
- 6.3 mm mono input (from amplifier)
- 2 x 6.3 mm mono outputs (to speaker)
- 6.3 mm mono Pre-JDX unbalanced output
- 6.3 mm mono Post-JDX unbalanced output
- XLR Post-EQ PA balanced output
- XLR Post-EQ / Mon balanced output
- rear mounted phase invert switch
- rear mounted ground lift switches for both balanced outputs
- rear-mounted control for Level (unbalanced output)
- dimensions (L x W x H) 154 mm x 305 mm x 88 mm
- weight 3,630 g
- made in Canada
