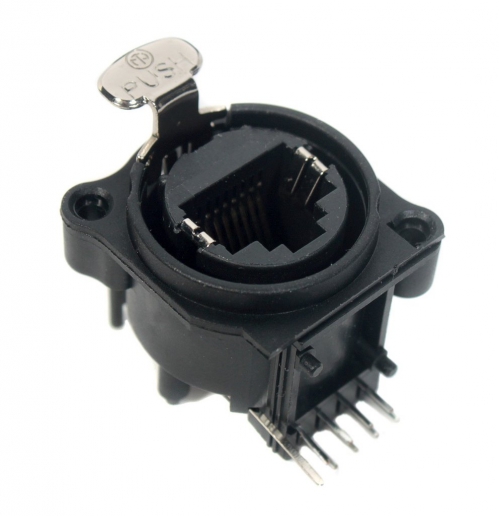

Neutrik Ne8fah Rj45

Neutrik NE8FAH RJ45

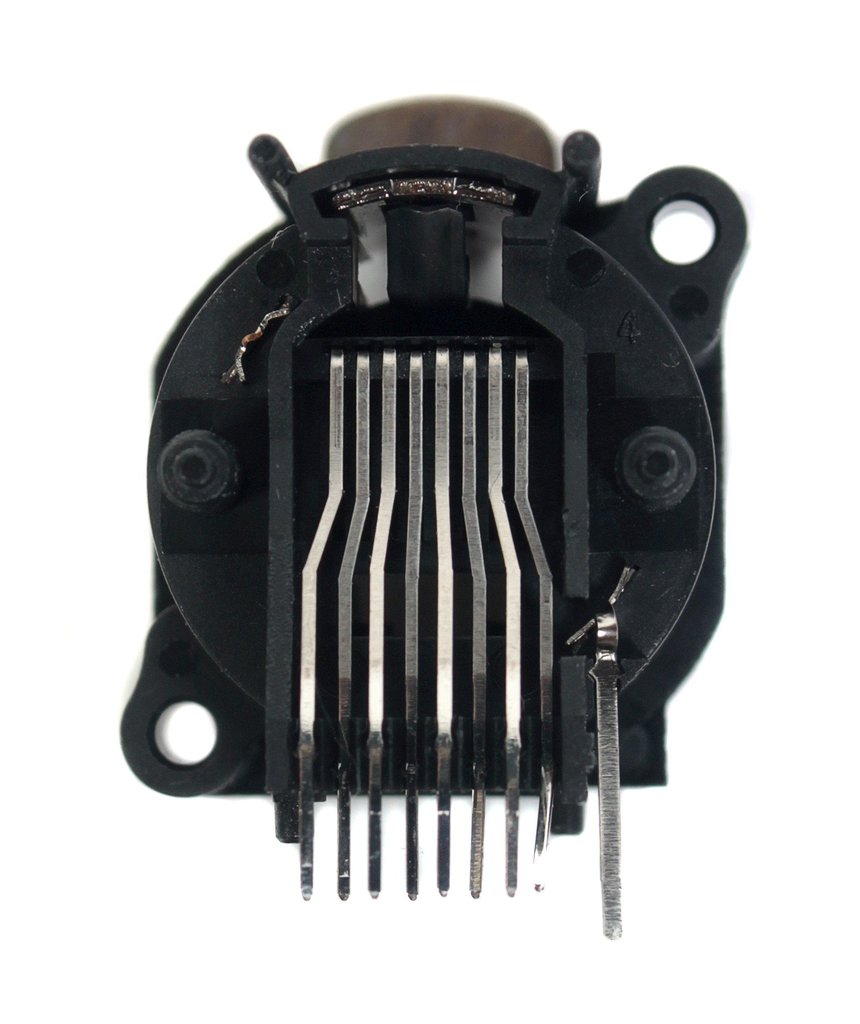

Horizonal PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3 mm. The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

• The all plastic A-Series offers the most space saving and cost effective design.
• Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Most space saving and cost effective design
• Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
• Isolated to panel ground


*Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
