Rcf Sub 702as Mk2

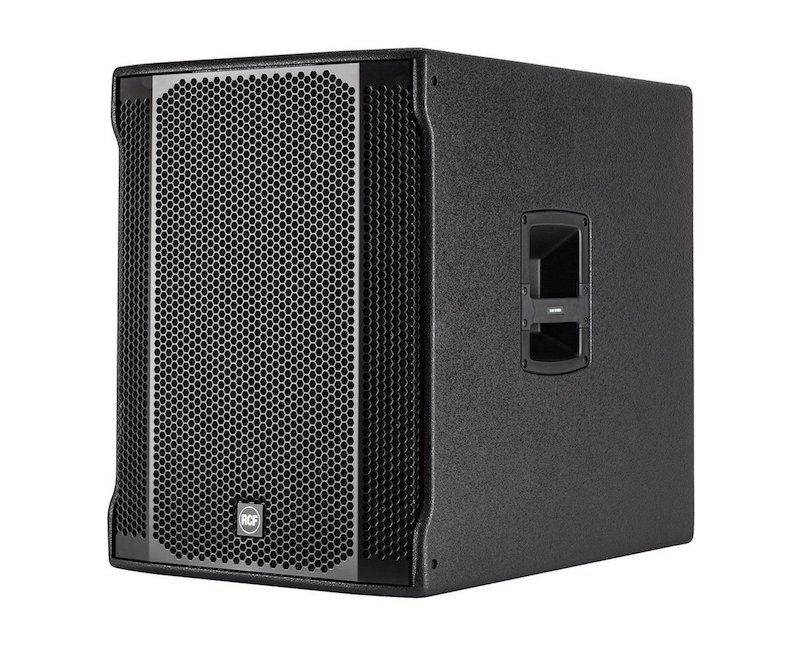

RCF SUB 702-AS MkII

Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.

Powerful lows

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive musical experience.

Cabinet & Mechanics

The RCF cabinets are made of birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

Powerful Class-D amplifier

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.

Specifications:

• Digital amplifier
• Power: 1400 Watt Peak, 700 Watt RMS
• Peak SPL: 129 dB
• Consists of: 12" RCF Woofer with 2.5" voice coil
• Mono stereo crossover with switchable frequency 80/110 Hz
• Limiter
• Fanless
• Case made of birch plywood with black textured finish
• 2x XLR Input
• 2x XLR Out (X-Over or parallel)
• Pole mount
• Dimensions: 487 x 354 x 498 mm
• Weight: 17.5 kg
