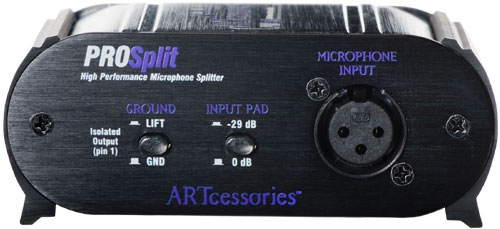

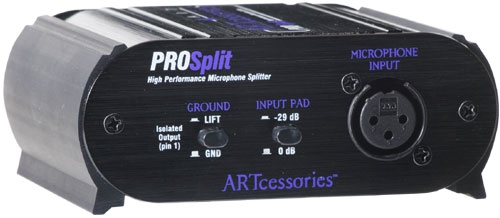

ART ProSplit
The ProSplit provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.
The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a preamplified (line-level) signal to the two microphone-level ProSplit outputs.
Specifications:
• Frequency response: 20Hz - 20kHz, +/- 0.25 dB @ -3dB @ -15dBu about 165Hz
• Total harmonic distortion:
- <0.26% of 20Hz - 20kHz, the input -15dBu
- <0.1% of 45Hz - 20kHz, the input -15dBu
- 0.002% typical @ 1kHz -15dBu at the input
• Phase shift: <10 ° @ 20kHz (Ref, 1kHz)
• Input impedance:> 1,1kOhm @ 1kHz (typically 150Ohm)
• Output Impedance: <255Ohm @ 1kHz (typically 1kOhm)
• Maximum input level: -1,4dBu @ 20Hz / + 3,5dBu
• CMRR:> 105dB @ 60Hz /> 80dB @ 3kHz
• Attenuation: about 2 dB @ 1kHz
• Maximum input level at 1% THD: -1,4dBu @ 20Hz / 30Hz @ 3,5dBu + / + 9,4dBu @ 50Hz
• Dimensions: 47 x 117 x 89 mm
• Weight: 0.4 kg
