LD Systems WS 1G8 BPHH bezdrátový mikrofon

LD Systems WS 1G8 BPH

The new LD Systems WS1G8 is a true diversity wireless microphone system with 192 UHF channels that delivers natural sound with a wide dynamic range, high S/N ratio, and low THD in the 1785 - 1800 MHz band. The WS1G8 series permits simultaneous operation of up to 6 systems and is available in various versions. You can choose between a handheld dynamic or condenser microphone or a belt-pack transmitter with your choice of a headset, a lavaliere microphone, a clamp-on microphone for brass instruments or a guitar adapter cable. The system guarantees reliable audio transmission with a frequency response of 50 Hz to 16 kHz. Both the handheld microphone and the belt-pack have a practical LC display for the channel, the group, and the battery status. The automatic channel scan (ASC) function and the lighted multi-function display on the receiver ensure simple setup and operation. With high quality batteries (AA), it is possible to attain running times of up to 13 hours. All WS1G8 systems come with a rugged transport case made of ABS plastic.

Specifications:

LDWS100MH1 - Headset:

• Product type: Headset microphone
• Type: Back electret condenser
• Frequency response: 20Hz
• Directivity: cardioid
• Nominal impedance: 680Ohm(s)
• Phantom power requierements: 5V
• Microphone input: mini-XLR (3-pin, female)
• Accessories (included): Foam windscreen
• Weight: 0.06kg

LDWS1G8BP - Belt Pack Transmitter:

• Product type: Pocket transmitter
• Transmission frequency range: 1785.000MHz
• Channels: 192 (16 groups of 12 channels)
• Inputs: Mini-XLR (3-pin)
• Frequency response: 50Hz
• Rated HF output power: 10 mW
• Controls: Power On/Off
• Indicators: LC display
• Operating voltage: 2 x 1.5 V AA
• Operating time: up to 13 hrs., battery-dependent
• Width: 65mm
• Height: 90mm
• Depth: 24mm
• Weight: 0.1kg
• Other features: incl. batteries

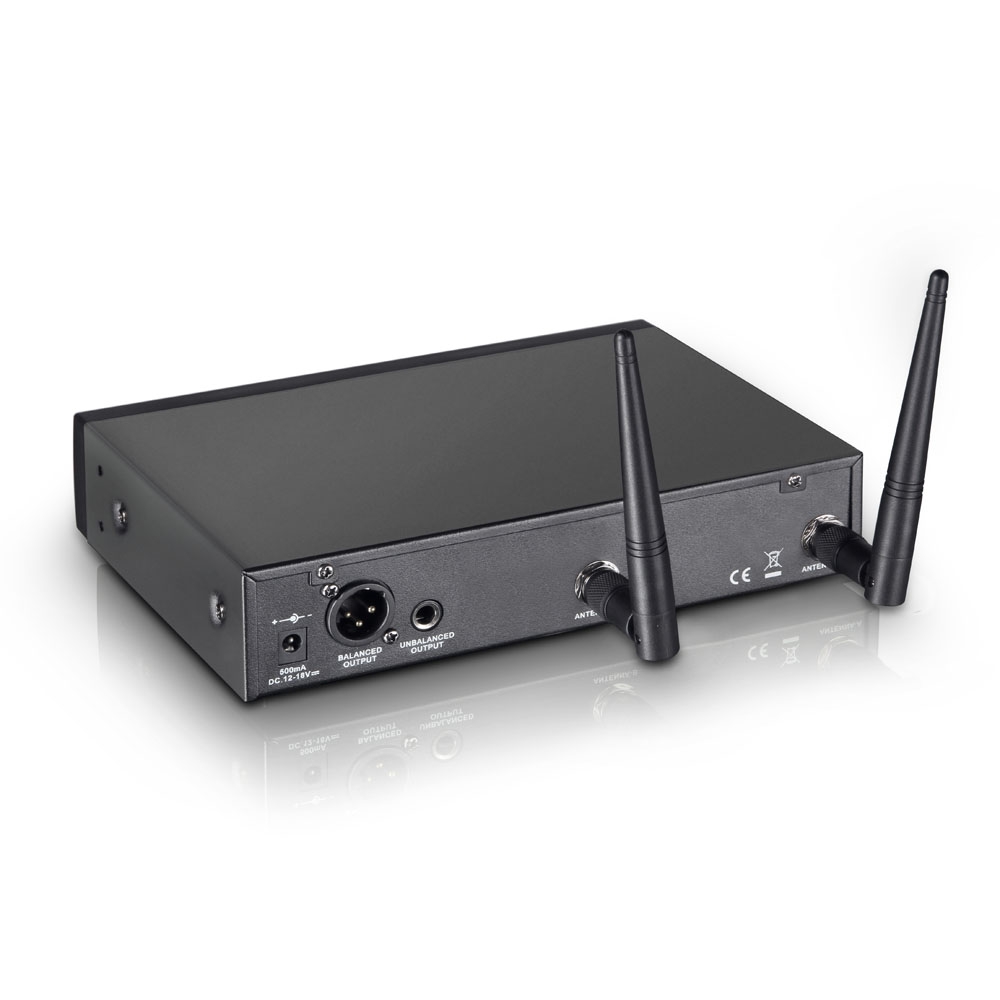

LDWS1G8R - Receiver:

• Product type: Receiver
• Type: true diversity
• Modulation Type: FM
• Transmission frequency range: 1785.000MHz
• Channels: 192 (16 groups of 12 channels)
• Antenna inputs: 2
• Antenna connector: TNC
• Frequency response: 50Hz
• Noise reduction: squelch
• Transmission optimization: pilot tone
• THD: < 0.6 %
• Audio output, balanced: XLR - 12 dBV (600 ohms) / 6.3 mm TRS - 18 dBV (3 kohms)
• Controls: Power On/Off, set, ASC, down, up
• Indicators: antenna active (A/B), 7-segment AF, LC display, 2 x 6-segment RF (A/B)
• Operating voltage: 12 - 18 V DC
• Width: 212mm
• Height: 45mm
• Depth: 163mm
• Weight: 0.92kg
• Accessories (included): batteries
