JBL EON 206P ozvučovací souprava

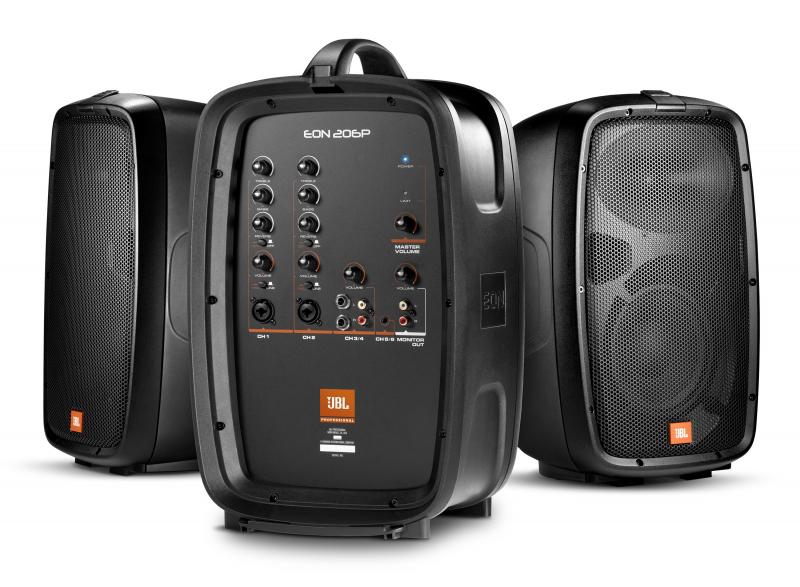

JBL EON 206P

The EON206P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message.

Specifications:

EON206 Speaker:
• System Type: 2 Self powered 6.5”, two-way, bass-re?ex
• Max SPL Output: 113 dB
• Frequency Range (-10dB): 64Hz – 22kHz
• Frequency Response (-3dB): 77Hz – 20kHz
• Coverage Pattern: 100° x 80°
• Amplifer Design: Class D
• Power Rating: 160 W (2 X 80W)
• Package Dimentions (mm): 530 x 705 x 340 (H x W x D) (in): 20.9” X 27.8” x 13.4”
• Net Weight: 11.38 kg (25 lbs)

EON206 powered mixer:
• Input Connectors: 6 inputs (2 Mono Mic/Line, 2 x Stereo)
• Channels: 1-2 are XLR / 1/4” jack combo connectors
• XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack
• Input Impedance: Ch 1-2 Combo: XLR 40 K Ohms Balanced
• Ch 1-2 Combo: TRS 40 K Ohms Balanced
• Ch 3-4: TRS 20 K Ohms Balanced
• Ch 3-4: RCA 5 K Ohms Unbalanced
• Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
• Monitor outputs: one pair of RCA jacks (stereo)
• Signal Indicators: Limit:
• Yellow LED indicates limiter active condition
• EQ: Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
• System Limiter: On Board DSP Limiting and Tuning
