LD Systems DAVE 8 XSW ozvučovací souprava

LD Systems DAVE 8 XS White

The new LD Systems DAVE 8XS is a portable 2.1 multimedia system with a high-performance 8" band pass subwoofer and two satellites (each 4" + 1", with silk dome).

The system provides crystal-clear sound and was specifically designed for multimedia applications such as home PA or gaming; it is also suitable as a monitor for DJs or keyboardists or as a music system for smaller venues such as bars and cafés. The high-performance A/B amplifier built into the subwoofer provides for both the subwoofer and the satellites. The multimedia system LD DAVE 8XS has line inputs in XLR and RCA format and is equipped with all standard protections. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.

From serial number 130818000001, the satellite speakers are equipped with a 16 mm flange and are therefore compatible with the speaker stands from LDDAVE8SET2.

SPECIFICATIONS

• Max. SPL (continuous): 117dB
• Frequency response: 45 - 19.000Hz
• Dispersion (H x V): 60 x 60°
• Weight: 29kg

Subwoofer
• Low/mid driver dimensions: 8"
• Low/mid driver dimensions (mm): 203mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Cabinet construction: Bandpass
• Cabinet material: 15 mm MDF
• Cabinet surface: texture paint
• Subwoofer width: 352mm
• Subwoofer height: 430mm
• Depth Subwoofer: 434mm

Mid/Hi System
• Midrange size: 2 x 4"
• Midrange size: 2 x 101mm
• Midrange magnet: Ferrite
• Midrange brand: Custom-made
• Tweeter dimensions: 1"
• Tweeter dimensions (mm): 25.4mm
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Mid/Hi system impedance: 4Ohm(s)
• Loudspeaker inputs: 1
• Speaker input connections: Speakon compatible
• Cabinet construction mid/high: Closed
• Mid/Hi system cabinet material: 12 mm MDF
• Mid/Hi system cabinet surface: texture paint
• Mid/Hi system width: 144mm
• Mid/Hi system height: 350mm
• Mid/Hi system depth: 170mm

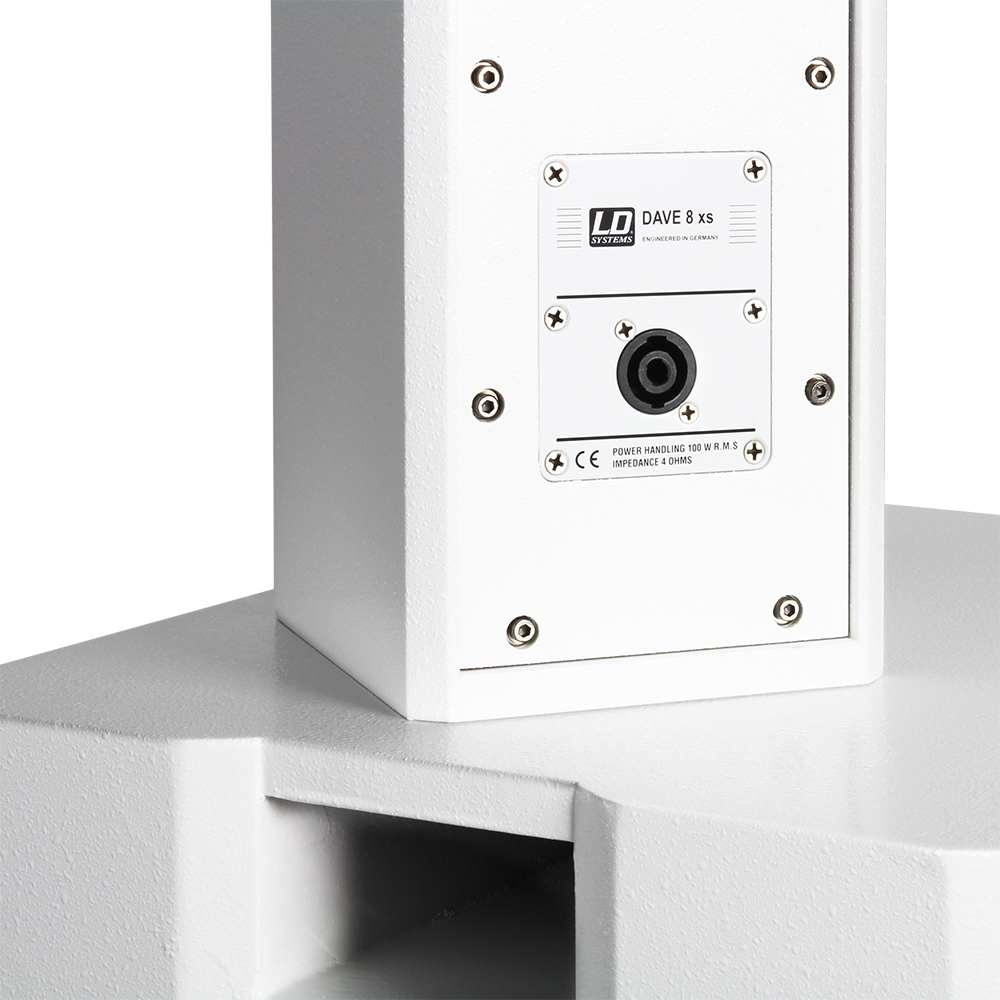

• Mid/Hi system features: 2 x M6 mounting points for wall mounting, 16 mm flange

Amplifier Module (integrated in Subwoofer)
• Amplifier: Class A/B (Bi-amp)
• Amplifier Output System (RMS): 350W
• Amplifier Output System (Peak): 1400W
• Protection circuits: limiter, overload, short circuit
• Cooling: Aluminium heat sink
• Controls: mains switch (on/off), volume, Subwoofer Phase Reverse, Subwoofer Volume
• Indicators: Power
• Operating voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
• Line input connectors: 6.3 mm Jack, RCA, XLR
• Speaker output connections: Speakon compatible
