Roland HS-5 mixér

Roland HS-5 mixer

Convenient and simple to use, the HS-5 allows up to five musicians to rehearse, jam, and record while monitoring with headphones. Players have individual hands-on control of their personal mix, plus access to reverb and COSM effects for guitar, bass, and vocals. Bands can capture stereo recordings directly to a USB thumb drive, or connect the HS-5 to a computer via a USB cable and record each channel to individual tracks in a DAW. Additionally, each musician’s personalized settings can be saved for instant recall, providing quick setup for future rehearsals and recording sessions.

Features:

• Performer-friendly digital mixer with high-quality sound and USB
• Up to five musicians can rehearse or jam while monitoring with headphones
• Independent control of the monitor mix for each performer
• COSM amp modeling plus vocal effects and built-in reverb
• Record stereo mixes to a USB thumb drive
• Connect to a computer via USB for multitrack recording in a DAW

Specifications:

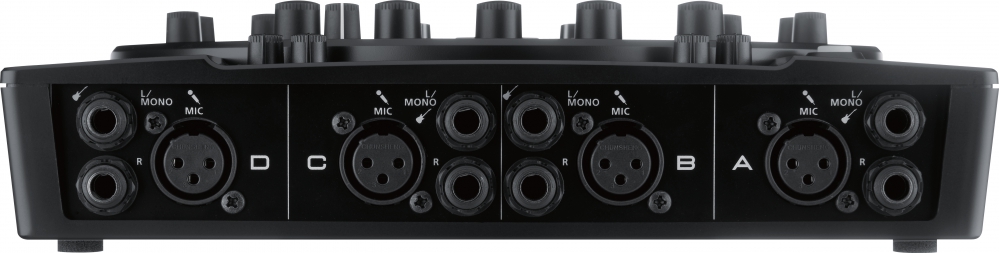

• Inputs
- 4x balanced XLR-3F on channels A, B, C, and D
- 4x 1/4" phono on channels A, B, C, and D
- 2x 1/4" phono for channel E
- 1x stereo miniature phono for channel E

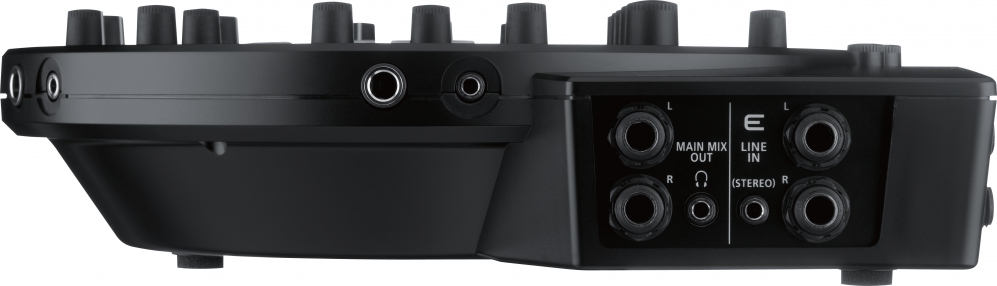

• Outputs
- 4x stereo 1/4" phono headphone jacks on channels A, B, C, and D
- 1x stereo miniature phono
- 1x stereo miniature phono on main mix out
- 2x 1/4" phono on left and right output

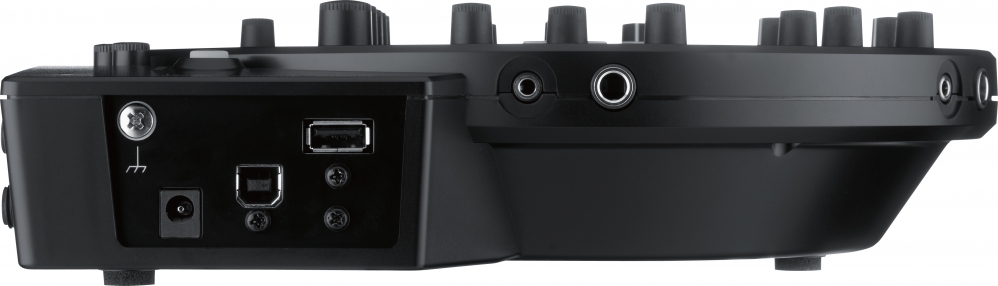

• USB
- 1x Type A for USB thumb drive
- 1x Type B for USB cable to function as audio interface
• Frequency Response:20 to 20,000 Hz (+20 dB/-2 dB)
• Nominal Input Level:
- Mic Jacks: -61 to -13 dBu
- 1/4" L/R Jacks: +4 dBu
- Stereo Miniature Phone: -10 dBu
- Nominal Output Level:
- Phones Jack: +6 dBu
- Main Mix Out: +4 dBu
- Output Jacks: +4 dBu

• Input Impedances
- Mic Jacks: 2.3 kΩ
- Input L/R Jacks: 12 Ω
- Hi-Z ON: input L = 680 kΩ
- Section E Input L/R jacks: 12 kΩ
- Section E Stereo Miniature Phone: 10 kΩ
• Output Impedances
- Section A Yhrough D Phones Jacks: 47 Ω
- Main Mix Out Phones Jacks: 47 Ω
- Output L/R Jacks: 1 kΩ
• Processing
- Sampling Frequency: 44.1 kHz
- Bit Depth: 24-bit
• Recorder
- Tracks: 2 (stereo)
- Recording Mode: 44.1 kHz at 16-bit to USB flash drive
- Recording Media: USB flash drive (512 MB to 32 GB)
• Recording Time:
- 2 GB: 3 hours
- 4 GB: 6 hours
- 8 GB: 12 hours
- 16 GB: 24 hours
- 32 GB: 48 hours
• Approximate
• Max recording time for one song is 200 minutes
• Up to 512 songs on a single USB flash drive
• Effects
- Guitar: 10 preamp types
- Bass: 10 preamp types
- Vocal: Compressor, Equalizer, Delay
- Reverb: 5 types
• General
- Power Supply: AC Adaptor
- Current Draw 1.2 A
- Dimensions (W x D x H): 10.1250 x 9.8125 x 0.6875" (25.7000 x 24.8000 x 6.8000 cm)
- Weight: 2.4 lb (1.1 kg)
