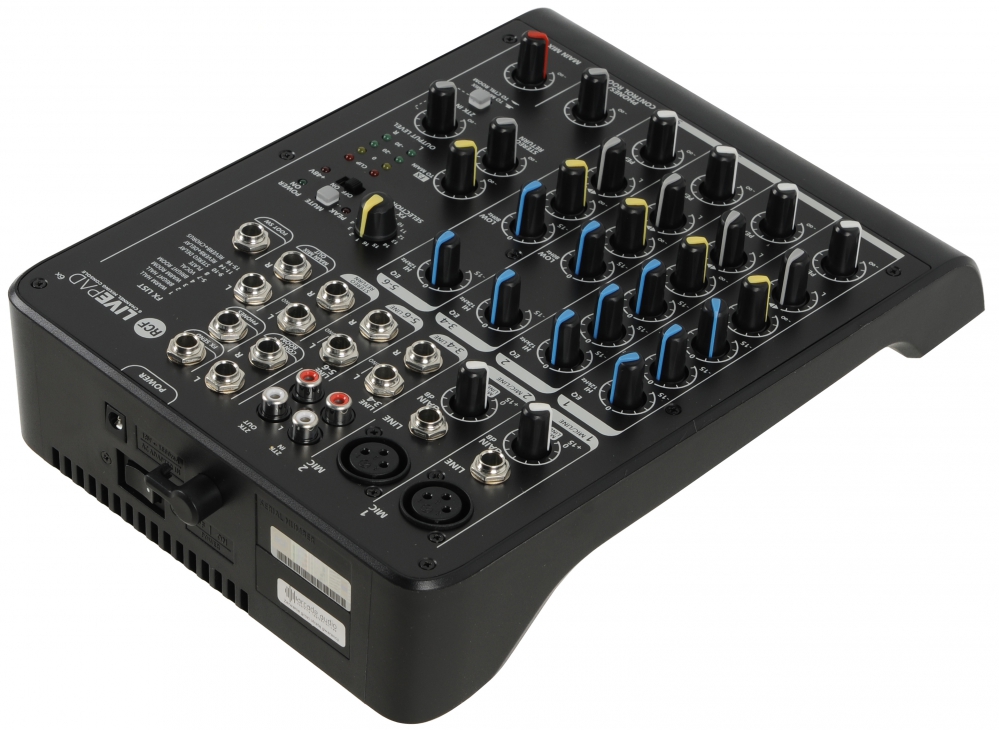

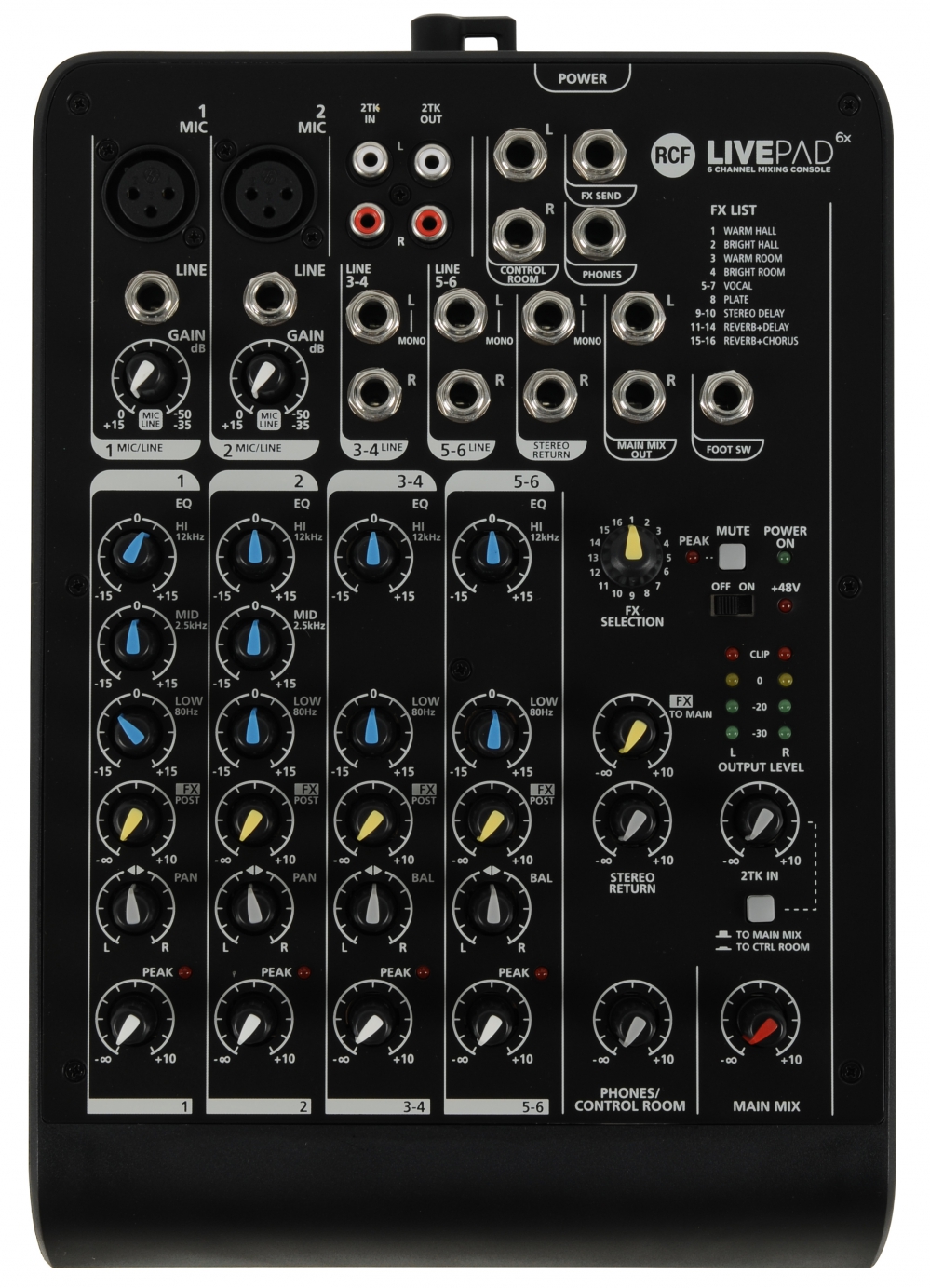

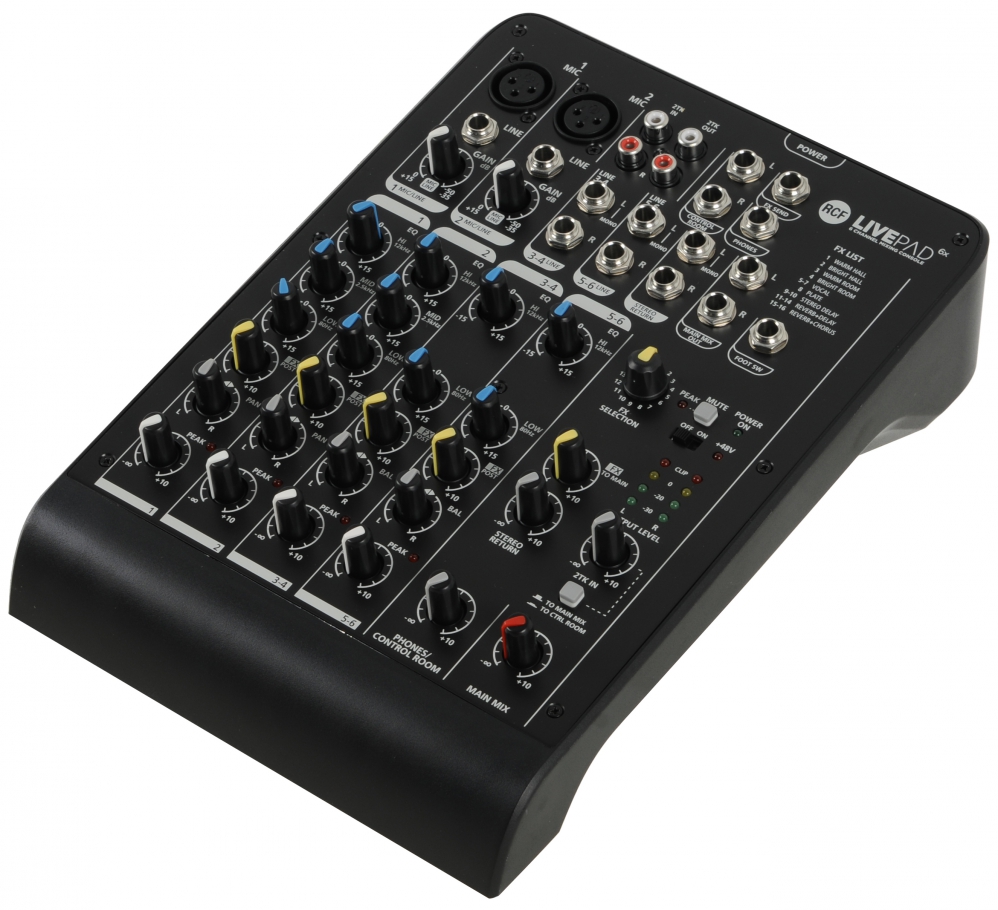

RCF LivePad 6X
With two transparent sound mic inputs, two stereo line inputs and the 2tk in/out, L-PAD 6X is the ideal tool for one man bands, speech, background music diffusion and parties. The 16-preset Internal FX DSP allows the sound to be improved, adding accurate and warm effects. Thanks to the accurate Italian design L-PAD 6X is easy to grab and handle in all the situations. It is possible to install L-PAD 6X on a mic stand with the dedicated accessories.
Features:
Inputs:
• 2 MIC XLR/line inputs with ¼ inch jack
• 2 stereo line inputs with ¼ inch jack
• 1 2TK inputs with RCA
• 1 stereo return with ¼ inch jack
Outputs:
• 1 2TK output with RCA
• 1 MAIN MIX stereo output with ¼ inch jack
• 1 CONTROL ROOM stereo output with ¼ inch jack
• 1 PHONES stereo output with ¼ inch jack
• 1 FX SEND output with ¼ inch jack
Other features:
• 1 footswitch connector with ¼ inch jack for FX MUTE
• Three-band EQ on mono channels
• Dual-band EQ for stereo channels
• 1 FX SEND
• Internal Digital Effects: warm & bright hall, warm & bright room, vocal, plate, stereo delay, rev+delay, rev+chorus
• External PSU 220 V-230 V / 18 V~ 1000 mA
Physical specifications:
• Dimensions: L = 275 mm, W = 195 mm, H = 75 mm
• Weight: 1.325 kg
