Shure BLX88

Název:	Shure BLX88
Výrobce:	Shure
Id zboží / Kód:	147507 / SHURE-BLX88E
Množství na skladu:	0 pcs.
Pozor! Cena tohoto zboží se mohla změnit. Aktuální cenu a čekací dobu dohodnete s opatrovníkem výrobku.
Jiné označení výrobku:	Shure BLX88 Dual Wireless Receiver for PG, SM and Beta Wireless, Shure BLX88E, BLX88E
Správce výrobku:	Jakub Pindelski, tel. +42 0234261768, email: [email protected]

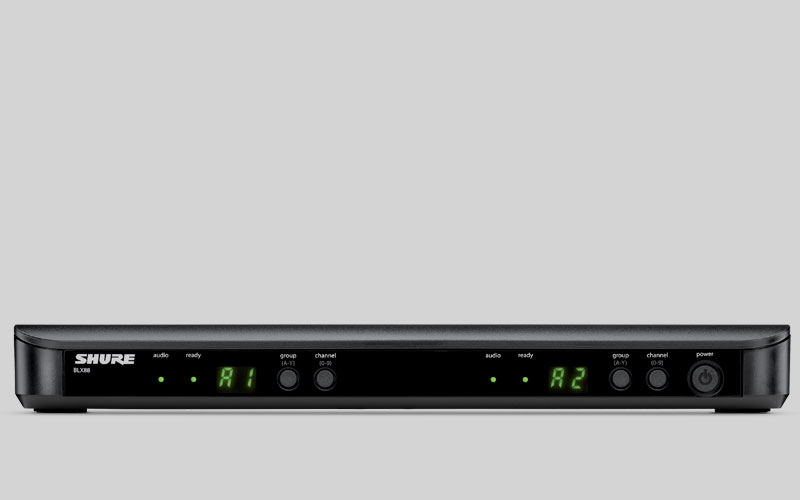

Shure BLX88 Dual Wireless Receiver for PG, SM and Beta Wireless

The Dual Analog Wireless Receiver BLX88 provides improved linearity and frequency response for up to 12 compatible channels per group with group and channel scan for easy set-up.

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open
• Frequency

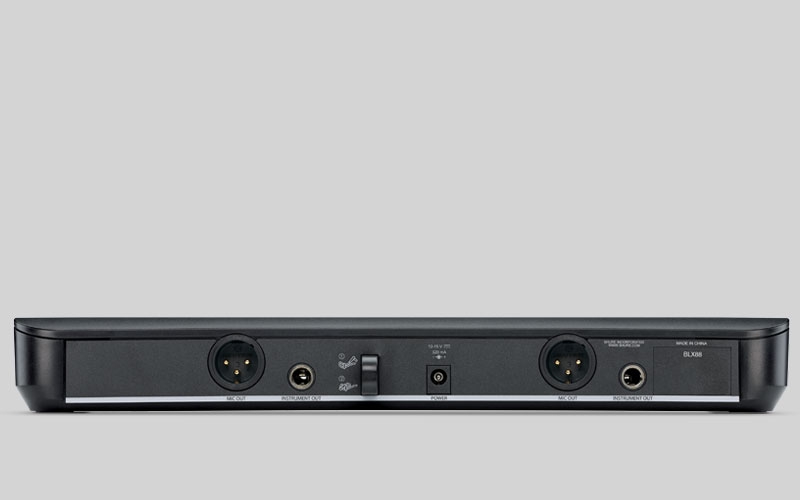

• ¼" and XLR audio outputs
• Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

• Power supply: PS23
• Maximum output level: XLR connector: –27 dBV (into 100 kΩ load) 6.35 mm (1/4”) connector: –13 dBV (into 100 kΩ load) mW
• Output Impedance:
- XLR connector: 200 Ω
- 6.35 mm (1/4") connector: 50 Ω
• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
- XLR connector –27 dBV (into 100 kΩ load)
- 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)
• RF Sensitivity: 105 dBm for 12 dB SINAD, typical
• Image Rejection: >50 dB, typical
• Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
• Weight: 429 g
• Housing: Molded ABS
• Power Requirements: 12–15 V DC @ 320 mA, supplied by external power supply (tip positive)
