DBX DB10

Název:	DBX DB10
Výrobce:	DBX
Id zboží / Kód:	142390 / DBX-DB-10
Množství na skladu:	0 pcs.
Pozor! Cena tohoto zboží se mohla změnit. Aktuální cenu a čekací dobu dohodnete s opatrovníkem výrobku.
Jiné označení výrobku:	DBX DB 10 passive Di-Box, DBX DB-10, DBX DB 10, DBX DB10, DB-10, DB 10, DB10
Správce výrobku:	Jakub Pindelski, tel. +42 0234261768, email: [email protected]

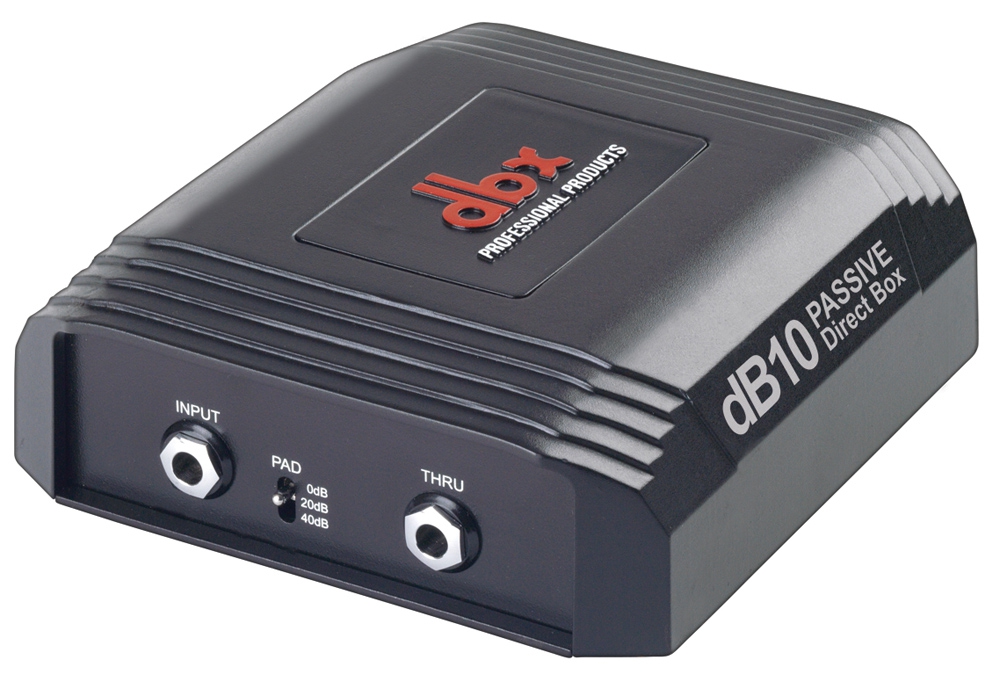

DBX DB 10 Di-Box

Features:

• Premium Performance
• Rugged Design
• Stackable Chassis with Durable Rubber Foot
• Gold-plated Neutrik® XLR Connector
• Premium Chrome Toggle Switches
• Hi-Z 1/4" Input Jack
• Parallel 1/4" Thru Jack
• Transformer Isolated
• Premium Shielded Custom dbx Transformer
• Balanced XLR Lo-Z Output
• 3-Way 0/20/40 dB Pad Switch
• Flat/High-Cut Filter Switch
• Output Polarity Invert Switch
• Ground Lift Switch

Specifications:

• Input: 1 instrument/line/speaker level
• Input Connectors: 1/4" jack
• Input Type: Unbalanced, RF filtered
• Insert Impedance: 150k Ohm typical
• Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
• Output: (Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
• Output Connectors: XLR male balanced
• Output Impedance: 150k Ohm typical
• Max Output: 0dBu
• Transformer: Custom dbx mu-metal-shielded
• Frequency Response: 20Hz to 20kHz, +/-2.5dB
• Noise: <-105dB unweighted, 22kHz BW
• THD <0.01%:, 20Hz to 20kHz BW; <0.005%, 1kHz
• Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
• Unit Weight: 1.4 lbs / 0.65 kg
