Název: | LD Systems WS ECO2 BPH2 bezdrátový mikrofon |
---|---|
Výrobce: | LD Systems |
Id zboží / Kód: | 140781 / LDS-WS-ECO2-BPH2 |
Množství na skladu: | 0 pcs. |
Produkt již není k dispozici. | |
Jiné označení výrobku: | LD Systems WS ECO2 BPH2 wireless microphone system , LD Systems WS-ECO2-BPH2, LD Systems WS ECO2 BPH2, LD Systems WSECO2BPH2, WS-ECO2-BPH2, WS ECO2 BPH2, WSECO2BPH2 |
LD Systems WS ECO2 BPH2
With the WS ECO Series, LD Systems offers the perfect introduction to wireless audio transmission. All components guarantee optimal audio delivery via professional outputs. The UHF PLL wireless systems of the WS ECO Series by LD Systems operate on fixed frequencies and suitable for use whenever only a few transmission paths are required. The WS ECO Sets offer extensive features that are unique in this price range. All wireless microphone systems can be operated in the 793 – 814 MHz frequency band, which is not subject to registration or fees.
Specifications:
• 1 channel UHF PLL Diversity Wireless System
• Headset Version
• Removable antennas and optional 19" Rack Mount Kit
• Belt Pack with 3 Gain settings and Mute function
• Great operating distance (50 m open field)
• Long battery life
• 1 fixed frequency: 863.900 MHz
LDWS100MH1 - Headset
• Product type: Headset microphone
• Type: Back electret condenser
• Frequency response: 20Hz
• Directivity: cardioid
• Nominal impedance: 680Ohm(s)
• Phantom power requierements: 5V
• Microphone input: mini-XLR (3-pin, female)
• Accessories (included): Foam windscreen
• Weight: 0.06kg
LDWSECO2BP2 - Belt Pack Transmitter
• Product type: Pocket transmitter
• Transmission frequency range: 863.900MHz
• Channels: 1
• Inputs: Mini-XLR (3-pin) with phantom power (for headset)
• Frequency response: 60Hz
• Rated HF output power: 10 mW
• Controls: power (on/off/mute), Mic / 0dB / -10 dB switch
• Indicators: battery status
• Operating voltage: 2 x AA battery
• Operating time: >10 h (with alkaline batteries)
• Width: 65mm
• Height: 85mm
• Depth: 23mm
• Weight: 0.1kg
• Other features: incl. batteries

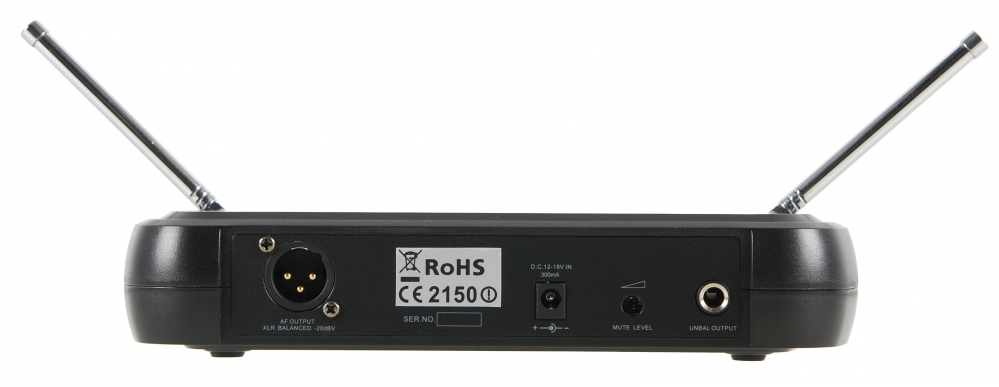

LDWSECO2R2 - Receiver
• Product type: Receiver
• Type: diversity
• Modulation Type: FM
• Transmission frequency range: 863.900MHz
• Channels: 1
• Antenna inputs: 2
• Antenna connector: fixed to housing
• Frequency response: 60Hz
• Noise reduction: squelch
• Signal-to-noise ratio: > 105dB
• Audio output, balanced: XLR
• Audio output, unbalanced: 6.3 mm Jack
• Controls: Mute Level (Squelch), volume
• Indicators: Power, antenna A/B, Audio signal (Norm / Peak)
• Operating voltage: 12 - 18 V DC, External Power Supply, 400 mA
• Width: 235mm
• Height: 44mm
• Depth: 118mm
• Weight: 0.6kg
• Accessories (included): batteries, power supply
