LD Systems WS ECO2 HHD2 bezdrátový mikrofon

LD Systems WS ECO2 HHD2

LD Systems ECO Sets are the perfect introduction to wireless audio transmission: All components guarantee optimal audio delivery via professional outputs. The extensive features of the LD WS ECO Series Sets are remarkable in this price category.
The frequency band of 863 - 865 MHz permits operation in most EU countries with no registration or licensing required.

Specifications:

• System:
- Fixed frequency: 863.900 MHz
- Range: 50m
- Frequency: (+/- 3 dB) 60 Hz -16 kHz
- Distortion factor (THD) (+/- 30 kHz, the audio signal of 1 kHz): <1%
- Dynamic: 90 dB
- Temperature range: -10 ° C / + 50 ° C

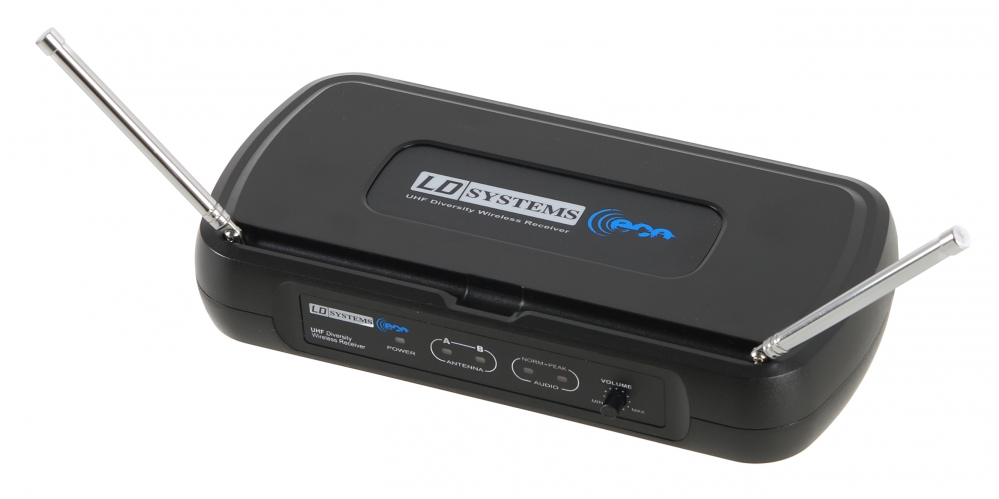

• Receiver:
- Max. Audio output level: +/- 30 kHz, 1 kHz
- XLR connector (600 ohms): -12 dBV
- Connector jack 6.3mm (3000 ohms): -18 dBV
- Impedance: 200 Ohm
- Sensitivity: <-92 dB
- Suppression of the mirror frequency: 90 dB
- Dimensions: 235x118x44 mm
- Weight: 400 g
- Power supply: 12-18 V, 400 mA
• The transmitter (handheld microphone):
- Maximum audio input level 0 dBV
- Dimensions: 250 mm (L.), 53 mm (diameter)
- Weight: 270 g
- Power supply: 2 alkaline batteries "AA" (mignon cells) or the corresponding batteries
- Battery life: 10 hours (alkaline)
- Power of the transmitted radio signal 10 mW
