Roland UA 55 Quad Capture

Roland UA 55 Quad Capture

With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, QUAD-CAPTURE sets a new standard for portable USB 2.0 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multichannel computer-based productions on the go. With quality and performance that far exceeds its size and price, QUAD-CAPTURE stands at the head of its class.

One-Click AUTO-SENS
Never before has it been faster or easier to set perfect input levels—simply activate the AUTO-SENS feature with the push of a button, play your connected instruments, and QUAD-CAPTURE automatically sets the ideal recording level for each input. Whether you’re a beginner or a professional, AUTO-SENS is great for quick, fail-safe recordings, saving you setup time and letting you focus on where it starts... the performance.

VS Streaming
QUAD-CAPTURE offers incredible stability and industry-leading low-latency USB performance via Roland’s proprietary VS Streaming technology. All current Mac and PC DAW platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac).

VS Preamps
QUAD-CAPTURE boasts two premium-grade, digitally controlled mic preamps (VS Preamps) made from the same high-grade components as the preamps found in Roland’s V-Studio 700 and M-400 digital mixer. Two XLR/TRS combo inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel. The VS preamps can be controlled easily and intuitively with the included graphical Control Panel software (Mac/PC).

Aluminum Build, DI Functionality
QUAD-CAPTURE is small, strong, and housed in a road-tough aluminum body, so you can transport it anywhere with the confidence that its premium internal components are securely protected.

SONAR X1 LE Bundle
Every QUAD-CAPTURE package includes a complimentary copy of SONAR X1 LE software for PC that’s designed to work fluidly and seamlessly with the interface.


Specification:

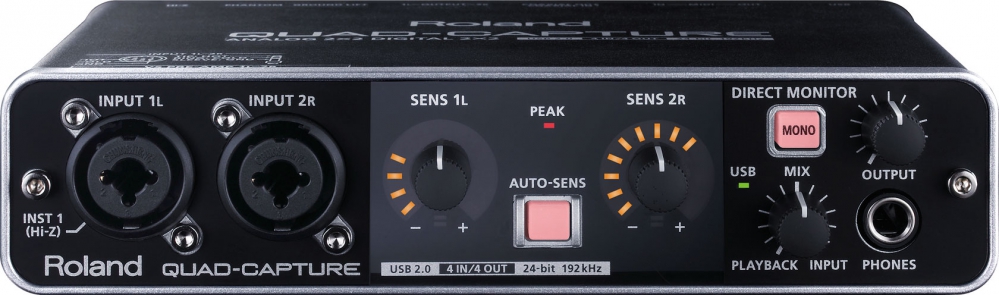

• Two combo XLR/TRS inputs with premium mic preamps (VS Preamps), two TRS outputs, coaxial I/O, headphone out, and MIDI I/O
• Graphical Control Panel software provides fast, intuitive control of the VS Preamps
• Phantom power, ground lift, and Hi-Z switches
• One-click AUTO-SENS function intelligently sets optimal input levels for the preamps
• Extreme low-latency VS Streaming driver
• Low-noise, wide-range power supply
• Compact with durable aluminum body and Direct Box functionality
• Bundled with Cakewalk SONAR X1 LE

• Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz
- Recording: 4 channels
- Playback: 4 channels
• Sampling Frequency = 192 kHz
- Recording: 2 channels
- Playback: 2 channels
• Signal Processing:
- PC interface: 24 bits
- AD/DA Conversion: 24 bits
- Internal: 40 bits
• Sampling Frequency:
- AD/DA Conversion 192 kHz, 96 kHz, 48 kHz, 44.1 kHz
- DIGITAL IN/OUT 96 kHz, 48 kHz, 44.1 kHz
• Nominal Input Level:
- Input jacks 1, 2 (XLR type) -60 to -6 dBu
- Input jacks 1, 2 (1/4-inch TRS phone type)
• Input Impedance:
- Input jacks 1, 2 (XLR type) 4.8 k ohms (balanced)
- Input jacks 1, 2 (1/4-inch TRS phone type)
• Output Impedance:
- OUTPUT 1, 2 2 k ohms (balanced)
- PHONES 47 ohms
• Frequency Response:
192.0 kHz - 20 Hz to 90 kHz (+0/-8 dB) ; 20 Hz to 60 kHz (+0/-2 dB)
96.0 kHz - 20 Hz to 40 kHz (+0/-2 dB)
48.0 kHz - 20 Hz to 22 kHz (+0/-2 dB)
44.1 kHz - 20 Hz to 20 kHz (+0/-2 dB)
• Connectors:
- Input jacks 1, 2 (XLR type / 1/4-inch TRS phone type)
- XLR type ... balanced (phantom power: DC 48V, 6mA Max per channel)
- 1/4-inch TRS phone type ... balanced (INPUT 1 supports high impedance)
- COAXIAL IN connector
- COAXIAL OUT connector
- Headphone jack (Stereo 1/4-inch phone type)
- OUTPUT jacks 1, 2 (1/4-inch TRS phone type (balanced))
- MIDI connectors (In, Out)
- USB connector
• Interface:
- Hi-Speed USB
- Digital input/output: Coaxial type (Conforms to IEC60958 consumer format)
- MIDI input/output
• Power Supply: USB Bus Power
• Current Draw: 480 mA
• Accessories:
- Owner's Manual
- Cakewalk SONAR LE DVD-ROM (for Windows)
- Driver CD-ROM
- USB cable
• Dimensions: 184.6 (L) x 133.9 (W) x 44.3 (H) mm
• Weight: 0.57 kg
