Palmer PAN 03 Di-box aktivní

Název:	Palmer PAN 03 Di-box aktivní
Výrobce:	Palmer
Id zboží / Kód:	129088 / PALMER-PAN-03
Množství na skladu:	0 pcs.
Pozor! Cena tohoto zboží se mohla změnit. Aktuální cenu a čekací dobu dohodnete s opatrovníkem výrobku.
Jiné označení výrobku:	Palmer PAN 03 active Di-box 4-ch, Palmer PAN-03, Palmer PAN 03, Palmer PAN03, PAN-03, PAN 03, PAN03
Správce výrobku:	Jakub Pindelski, tel. +42 0234261768, email: [email protected]

Palmer PAN 03

Active 4-channel DI box. Each channel has a jack input with a parallel output for passing through the signal. An attenuation switch (-30 dB) allows either a line or loudspeaker signal to be connected. Active 4 x DI box, 19" format.

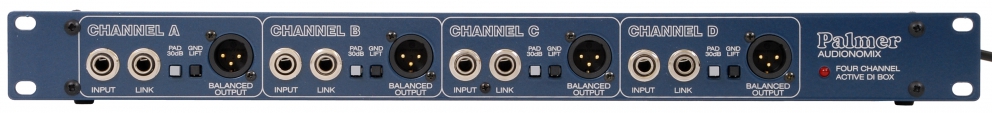

All connections and switches are located on the front panel, an additional parallel XLR output is located in back. 19 inch rack-mount format, 1 rack space, 90 mm front to back.

Specification:

• No. of channels: 4
• Passive/Actibe: Active
• Transformer balanced: Yes
• Attenuator: -30 dB
• Power Supply: AC Mains
• Input/Output Gain: -4 dB
• Ground lift switch: Yes
• Max Input Level: +45 dBu
• Max Output Level: +10 dBu
• Frequency Range 2K Source: -1dB: 10 Hz - 20 kHz
• Input Impedance 60Hz: 1 MΩ
• Nom. Output Impedance: 600 Ω
• Housing: Steel
• Dimension: 19x1x90 mm
