MXR M109S - Six Band Equalizer

The MXR Six Band EQ covers all the essential guitar frequencies, with each slider ready to deliver +/-18dB of cut or boost for incredible control over your sound. This pedal has been upgraded with noise-reduction circuitry, true bypass switching, and a lightweight aluminum housing.

- graphic 6-band equalizer
- +/-18 dB boost or cut per band
- low noise floor
- true bypass
- illuminated sliders (status LEDs)

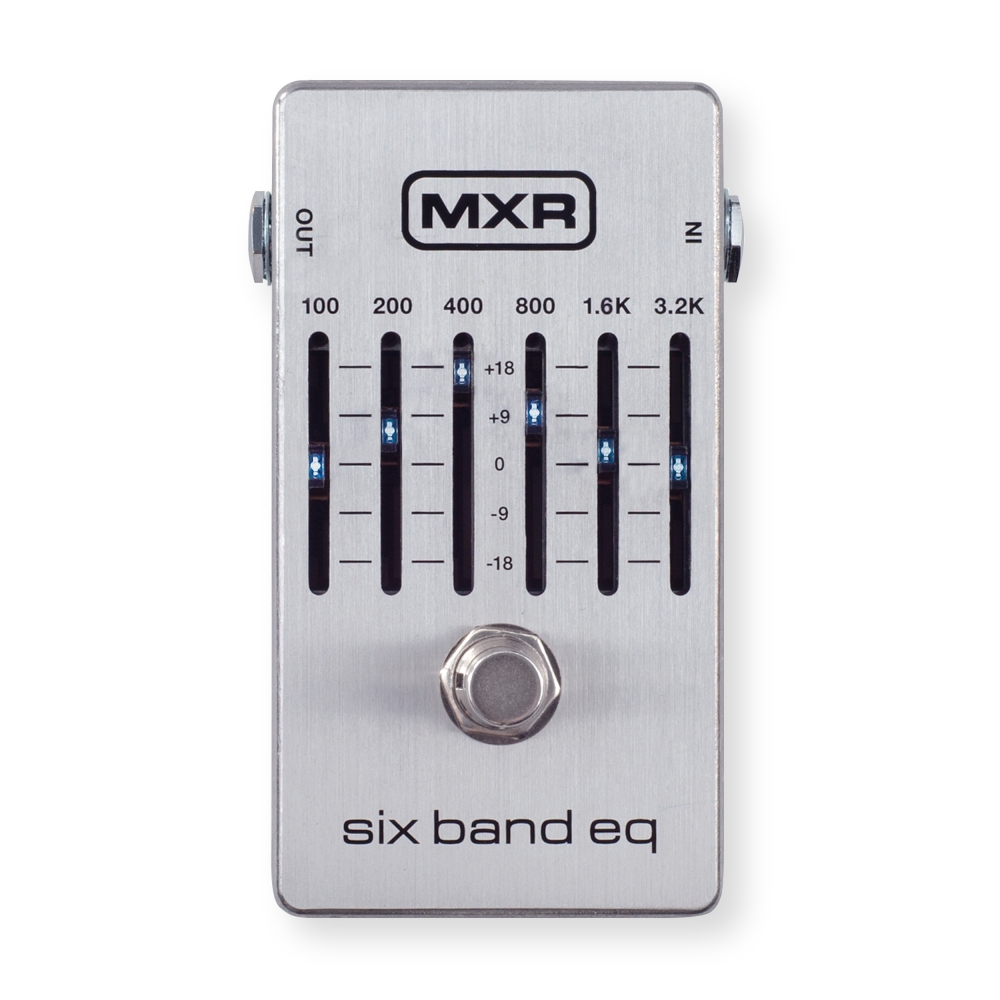

- controls for 100Hz, 200Hz, 400Hz, 800Hz, 1.6kHz and 3.2kHz
- aluminum housing

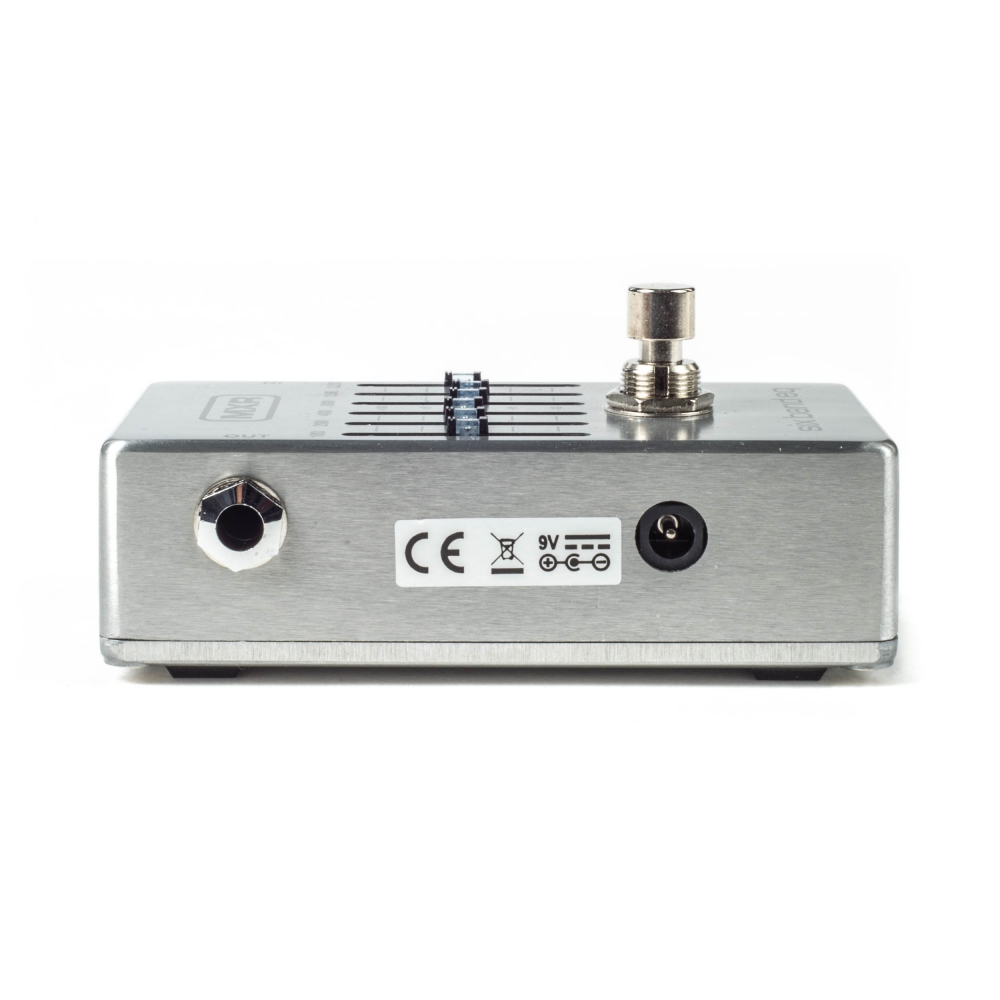

- power supply via 9V battery or optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center, e.g. Dunlop ECB-003
- current draw 14.5 mA
- dimensions (L x W x H) 110 x 60 x 50 mm
- weight 350 g
